Dry Type Concrete Batching Plant

Dry Type Concrete Plant is produced in 2 different models 90 m³ / h and 150 m³ / h.

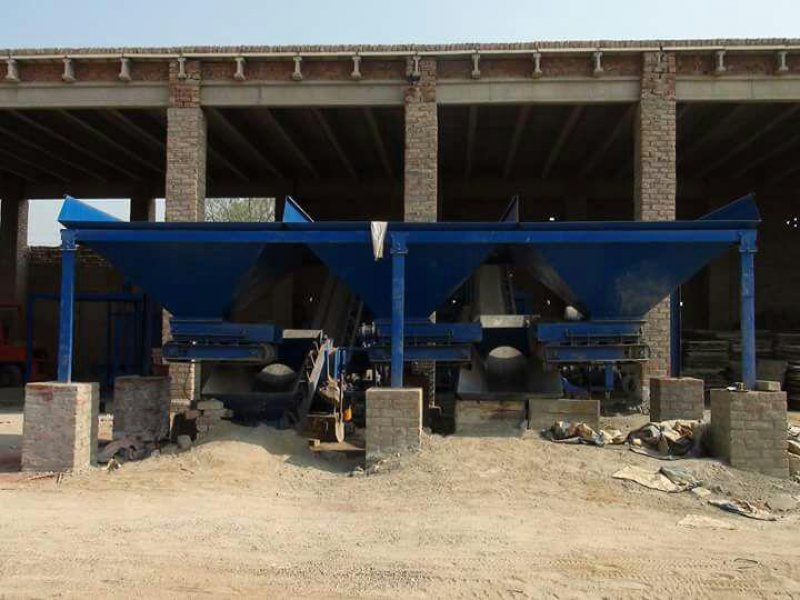

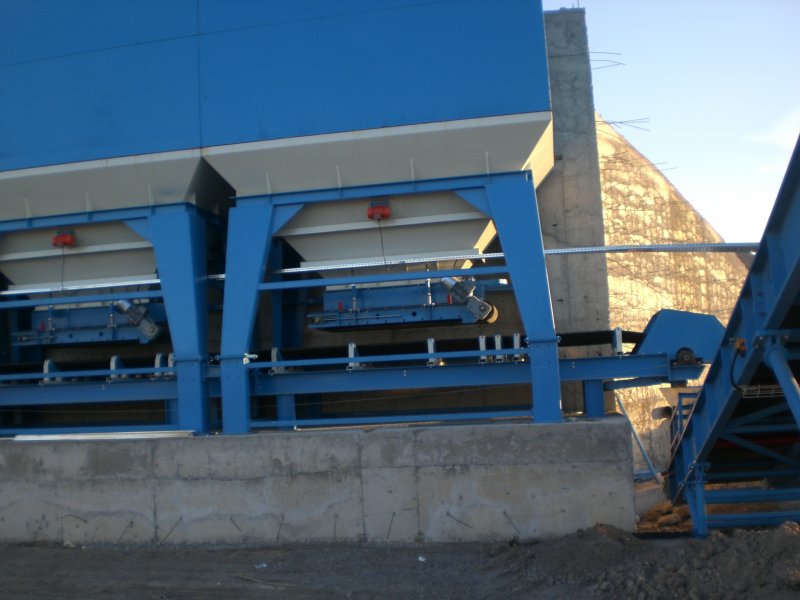

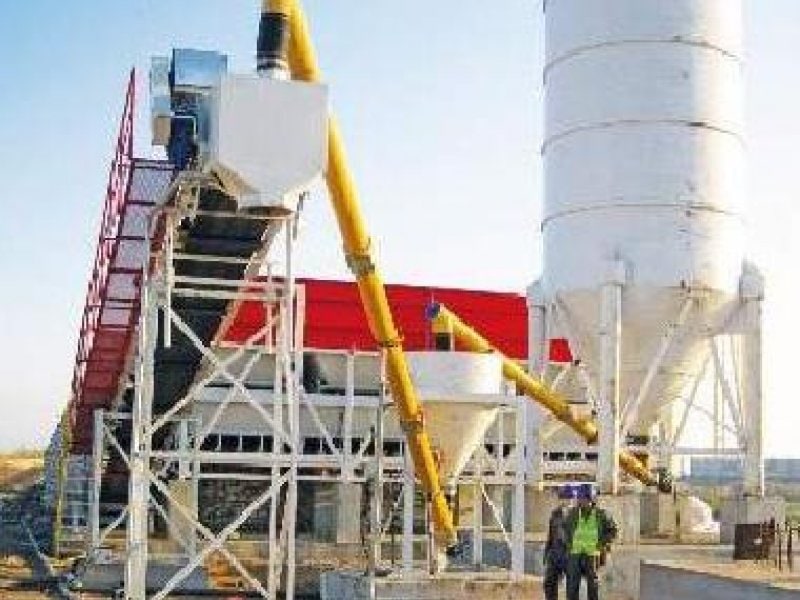

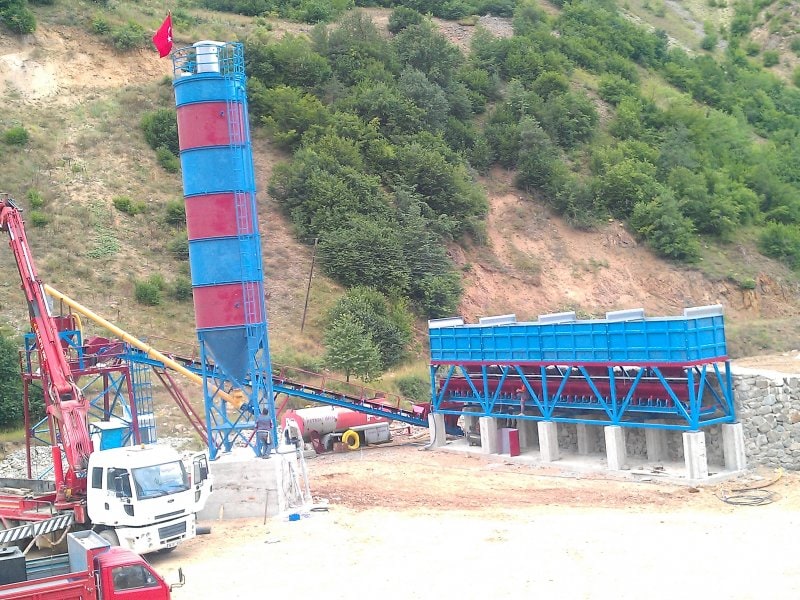

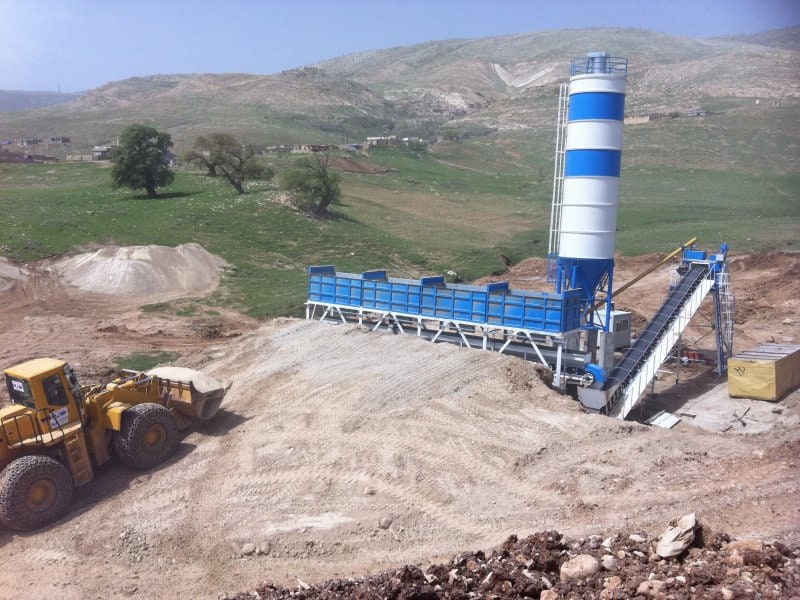

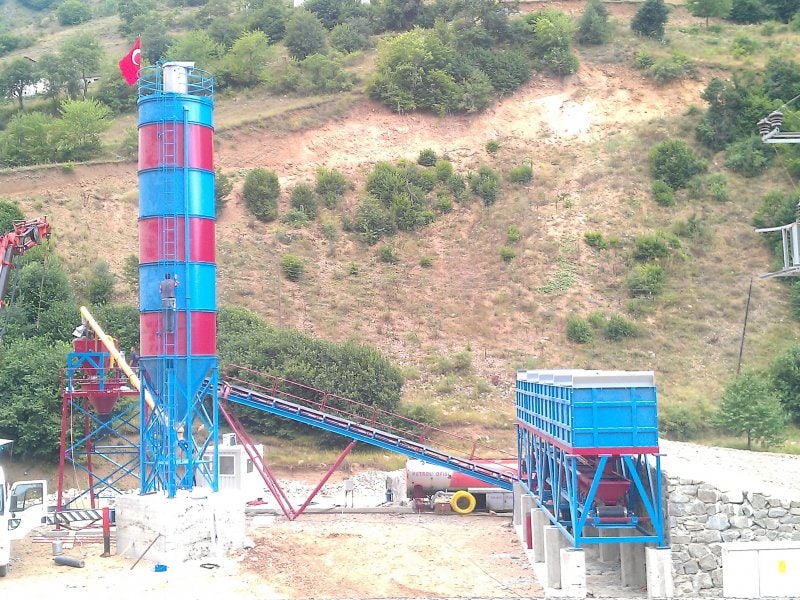

Hawk Plant, Dry Concrete Plant fully automatic stationary and mobile dry type plants without batching mixer. The concrete mixing process is completed in the truck mixer. When the concrete application area is far or concrete specification is not important much, the user prefers this type of concrete plant. The whole system is controlled by PLC. This type of concrete plant's advantages are first investment cost, transportation cost and installation cost less than standard concrete batching plants.

Get a Contact Us

Dry Type Concrete Batching Plant Technical Informations

Concrete Plant Unit DRY 90 DRY 150
Plant Capacity m³/h 90 m³/h 150 m³/h
Wet Concrete Capacity m³/h 90 m³/h 150 m³/h
Aggregate Weighing Kg 4800 Kg 9600 Kg
Cement Weighing Kg 1000 Kg 2000 Kg
Water Weighing Pulse Pulse Meter Pulse Meter
Additive Weighing Kg ………….…… ………….……
Aggregate Transfer Bucket ………….…… ………….……
Aggregate Holding Bunker ………….…… ………….……
Air Compressor Lt/d 1100 Lt/d 1880 Lt/d
Water Booster  kW-ton 2x4 kW - 60 ton 2x5,5 kW - 100 ton
