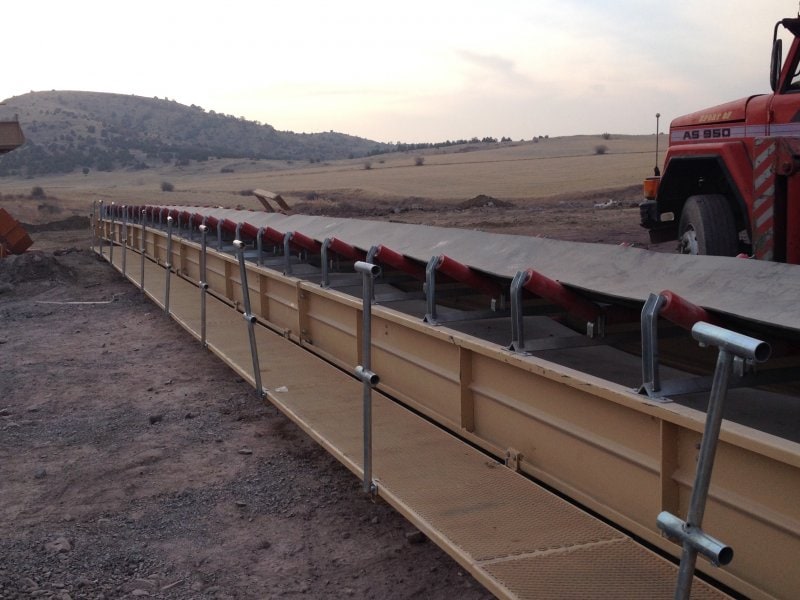

Conveyors are produced as fixed type according to the desired length such as 500, 600, 650, 750, 800, 1000 and 1200 mm. Fixed type conveyors are of two types: NPU profile or crimp sheet plate.

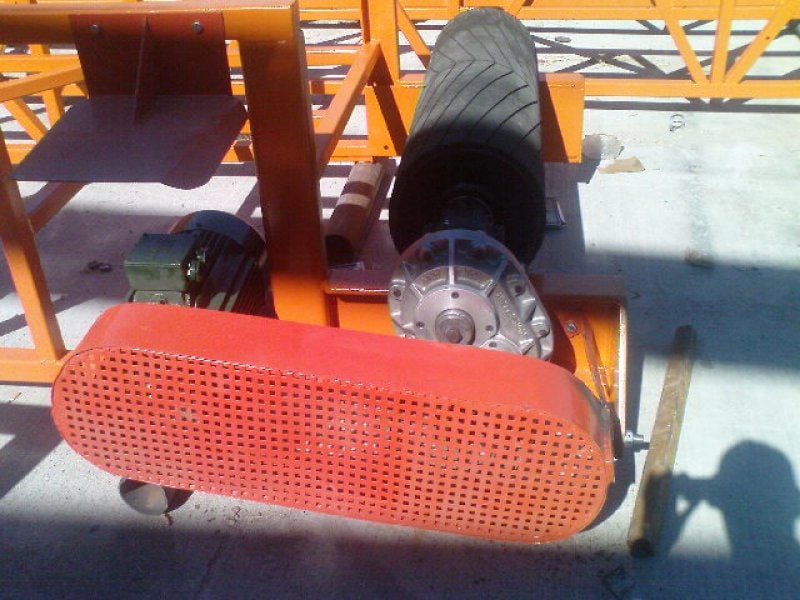

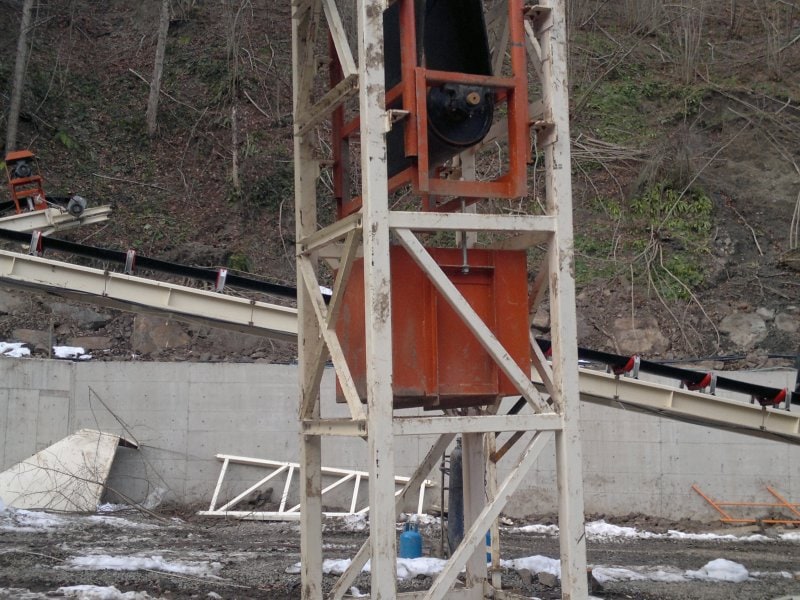

Our belt conveyors are equipped with screw tensioning system up to 40 meters and longer conveyors are manufactured with weighted tensioning system.
We also produce the conveyor belt, which we use as a stock tape, as a return type upon request from our customer.
| CONVEYOR BAND - TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| WIDTH OF THE BELT CONVEYOR | BAND SPEED | DRUM DIAMETER | DRUM ROTATION | MOTOR POWER | |||||||
| 500 | 600 | 750 | 1000 | BELT SPEED (m/s) |
DRUM DIAMETER (mm) |
DRUM SPEED (rpm) |
POWER (Kw) |
||||
| 0-8 MT | 0-6 MT | 1,6 | 273 | 105 | 3 | ||||||
| 9-15 MT | 7-12 MT | 0-6 MT | 0-5 MT | 320 | 90 | 4 | |||||
| 16-22 MT | 13-20 MT | 7-10 MT | 6-7 MT | 320 | 90 | 5.5 | |||||
| 23-33 MT | 21-30 MT | 11-15 MT | 320 | 90 | 7.5 | ||||||
| 8-12 MT | 400 | 72 | 7.5 | ||||||||
| 34-50 MT | 31-48 MT | 16-30 MT | 400 | 72 | 11 | ||||||
| 13-22 MT | 500 | 57 | 11 | ||||||||
| 23-25 MT | 500 | 57 | 15 | ||||||||
| 51-70 MT | 49-66 MT | 31-42 MT | 26-32 MT | 500 | 57 | 15 | |||||
| 70-90 MT | 67-90 MT | 43-54 MT | 33-40 MT | 600 | 48 | 18.5 | |||||
| 55-66 MT | 41-60 MT | 600 | 48 | 22 | |||||||
| 61-70 MT | 600 | 48 | 30 | ||||||||
