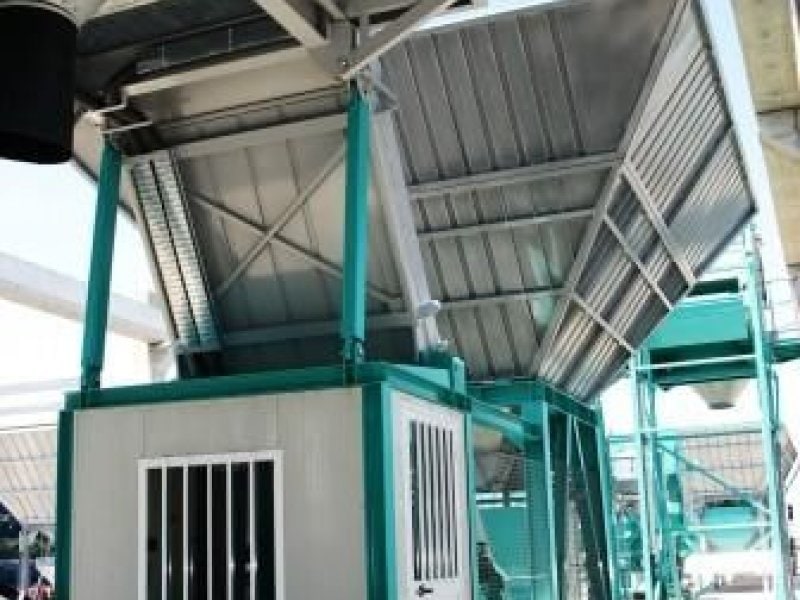

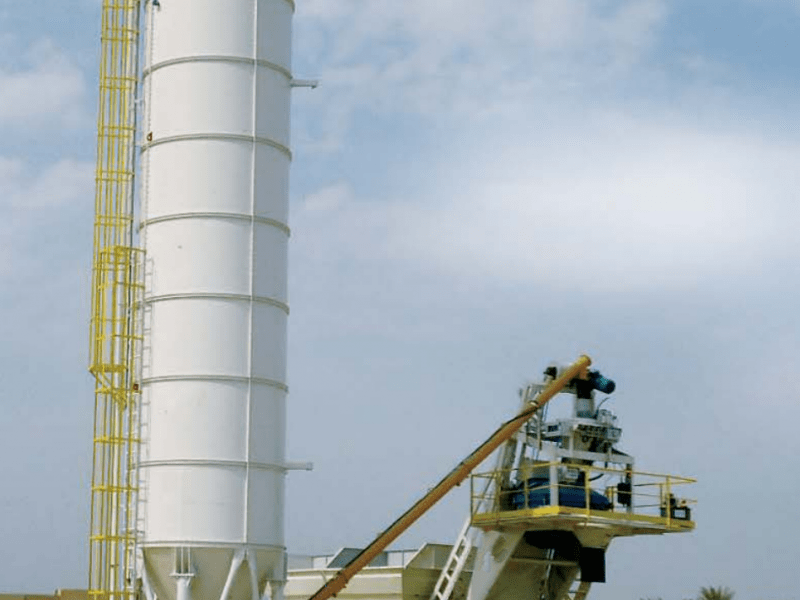

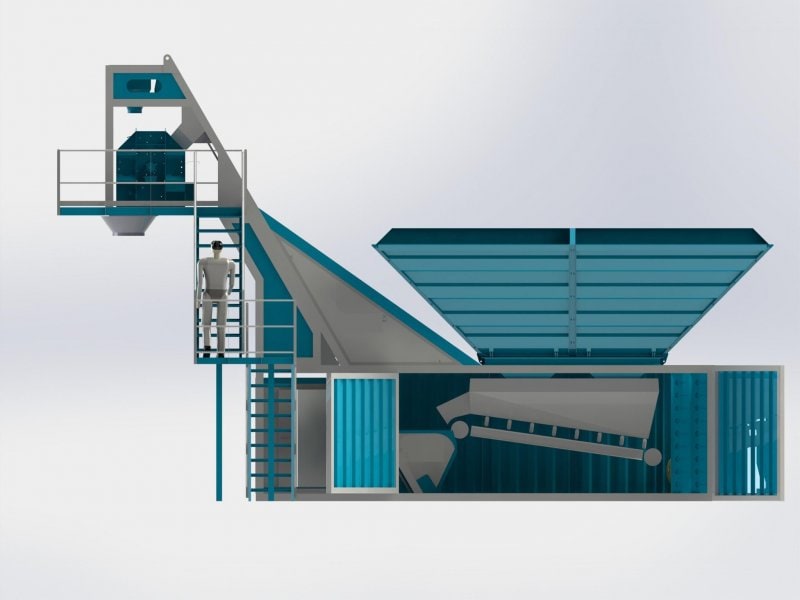

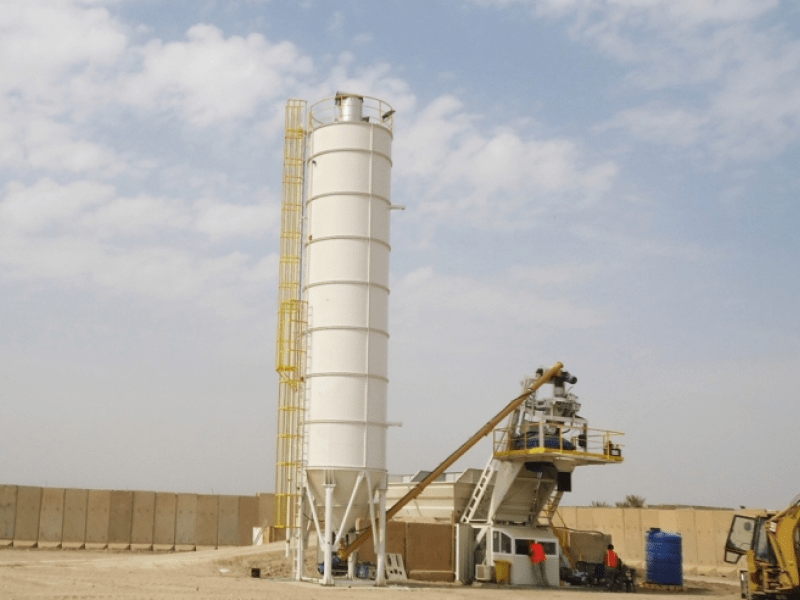

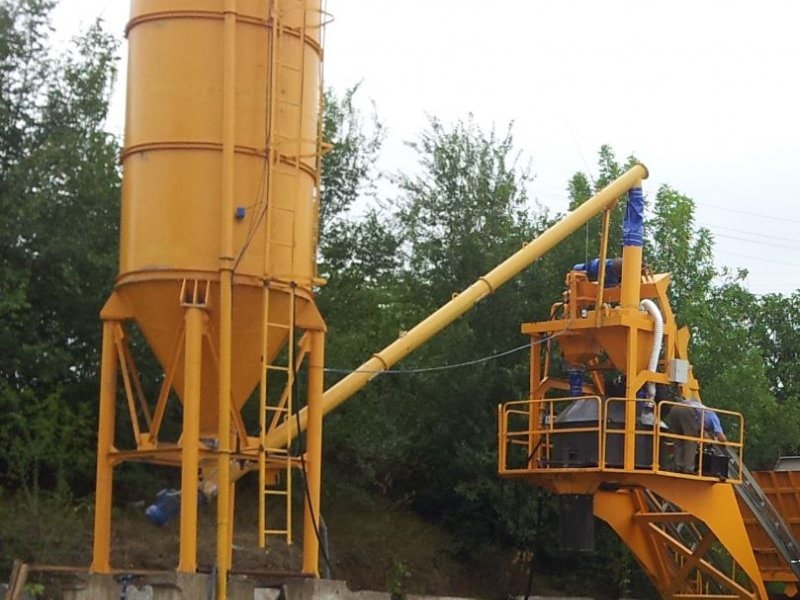

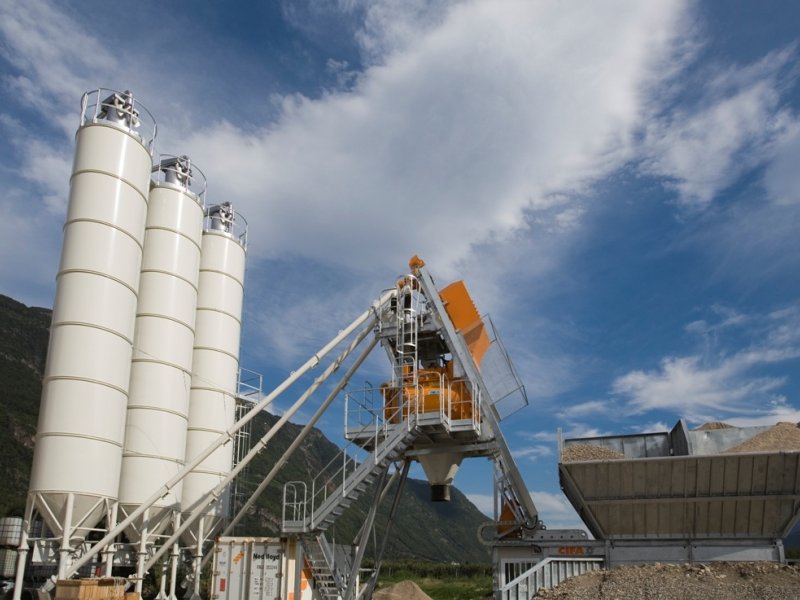

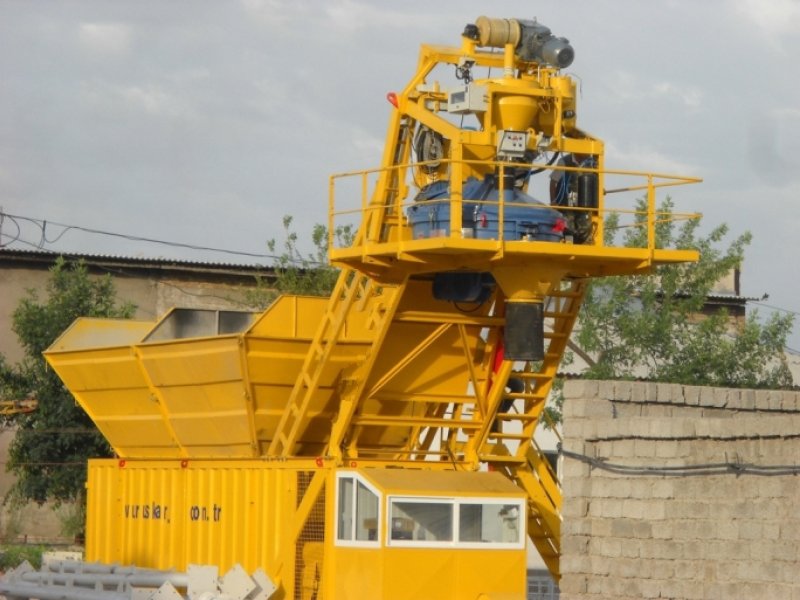

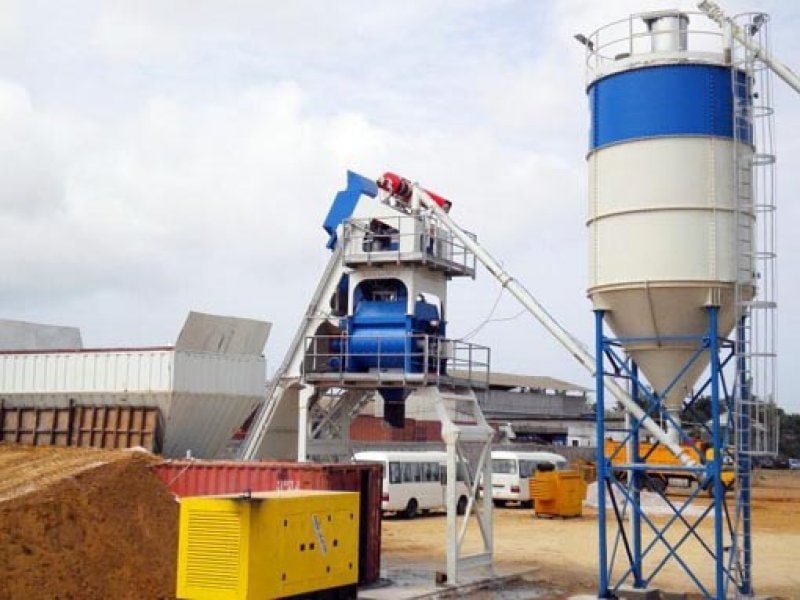

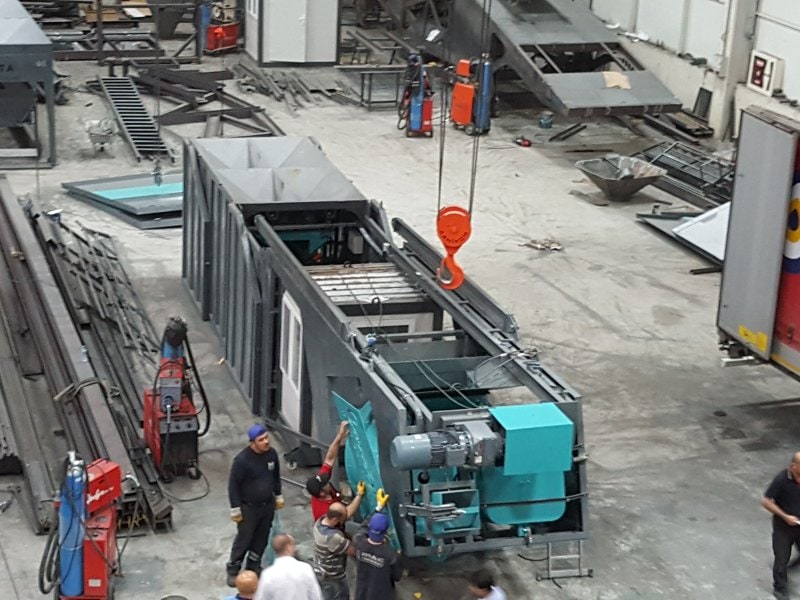

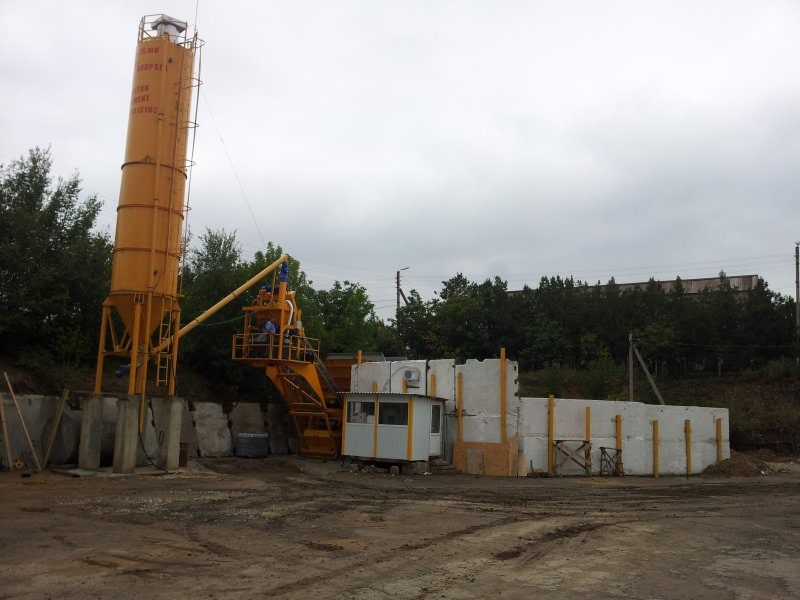

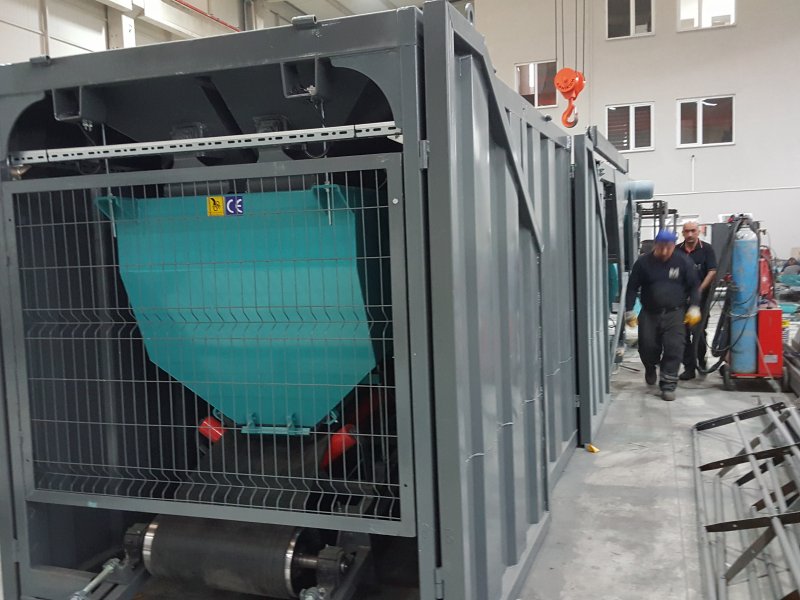

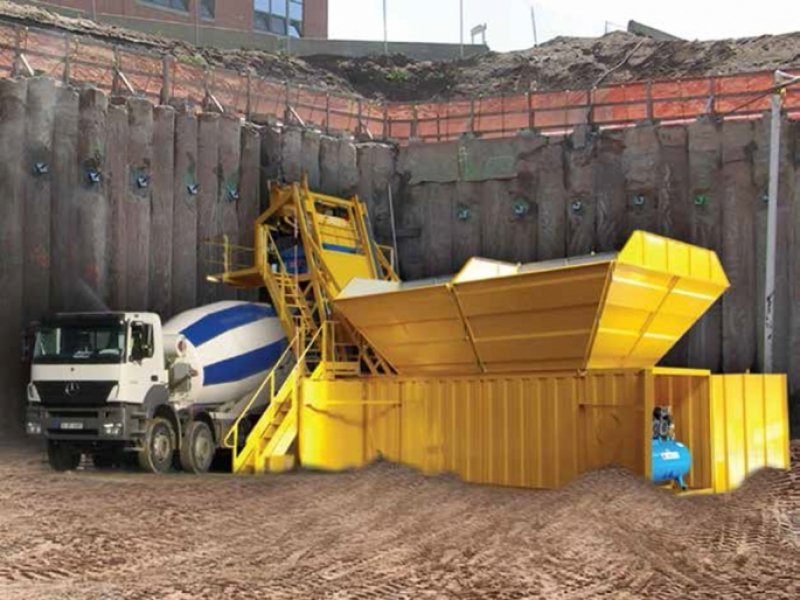

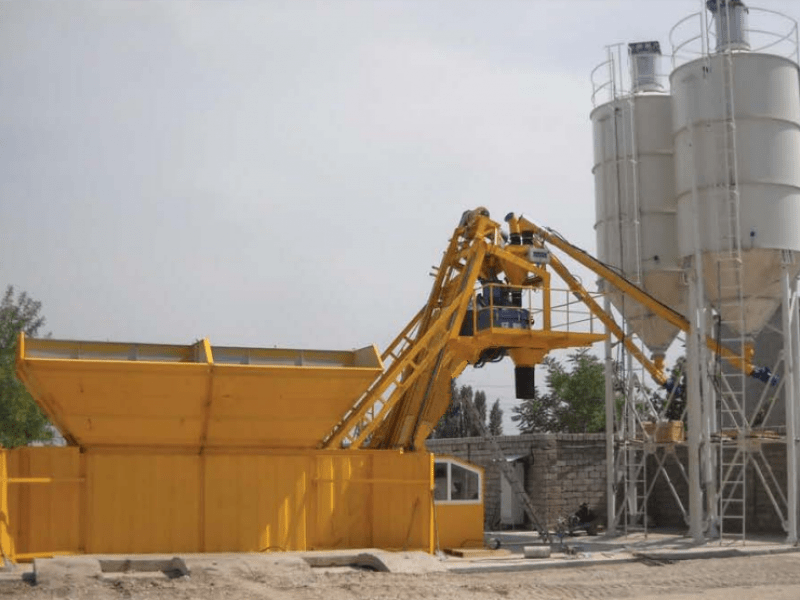

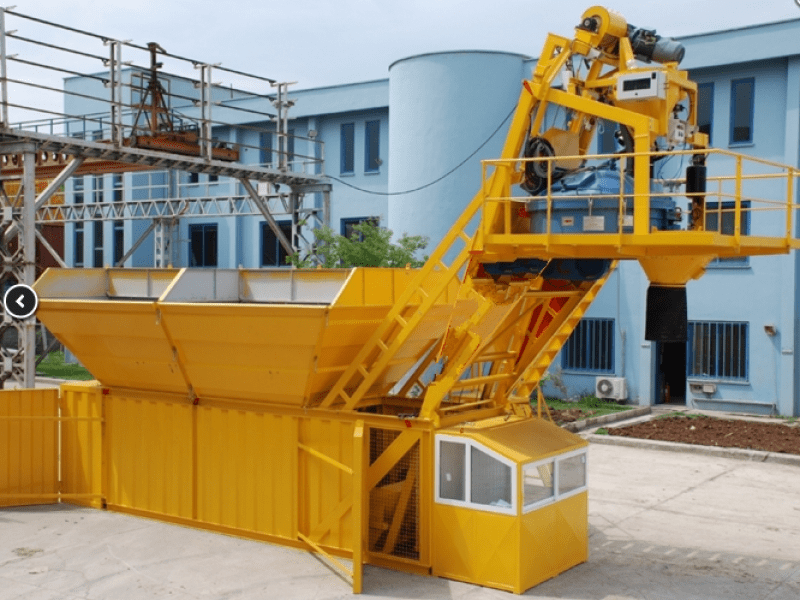

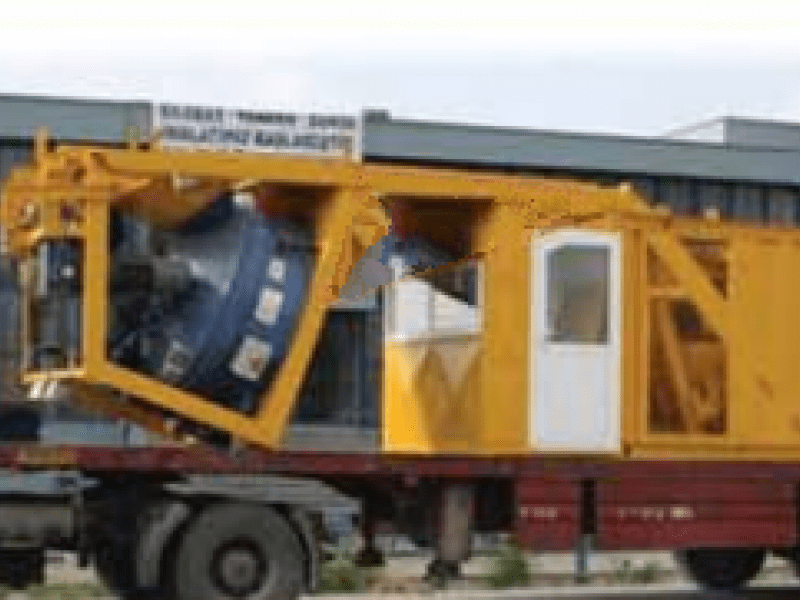

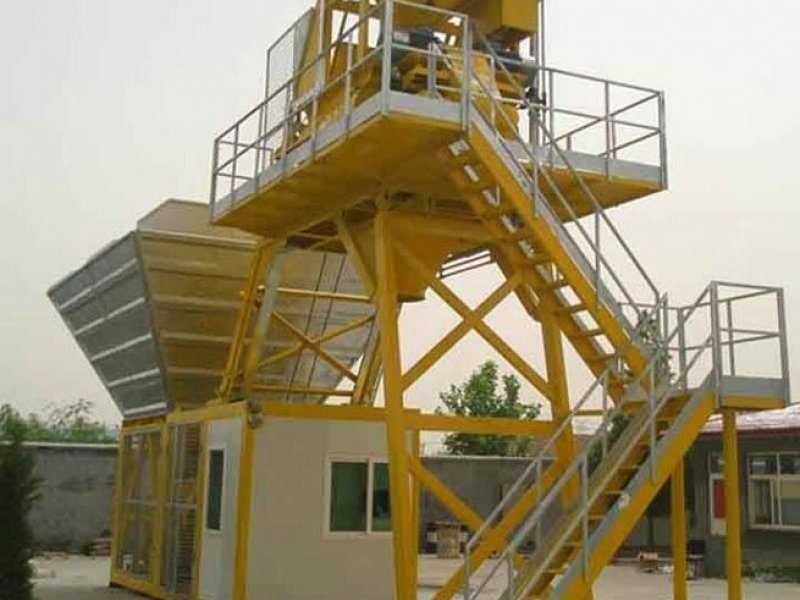

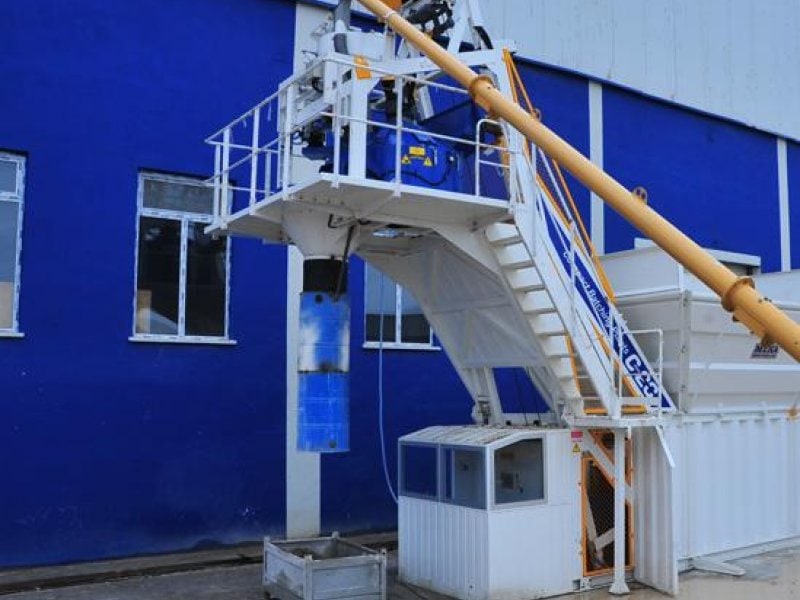

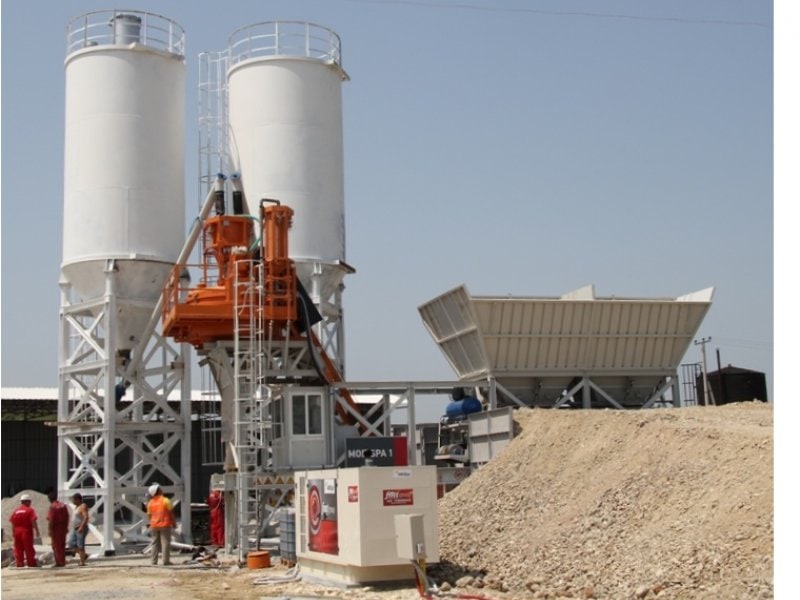

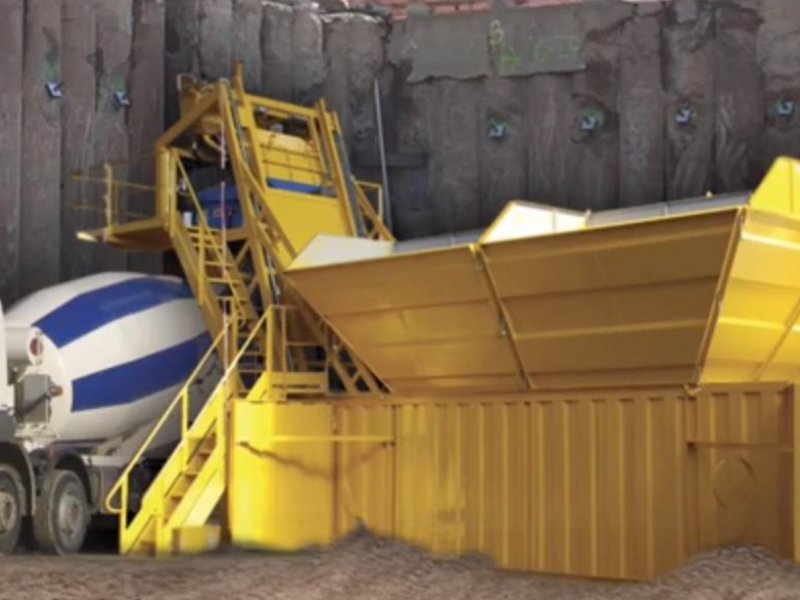

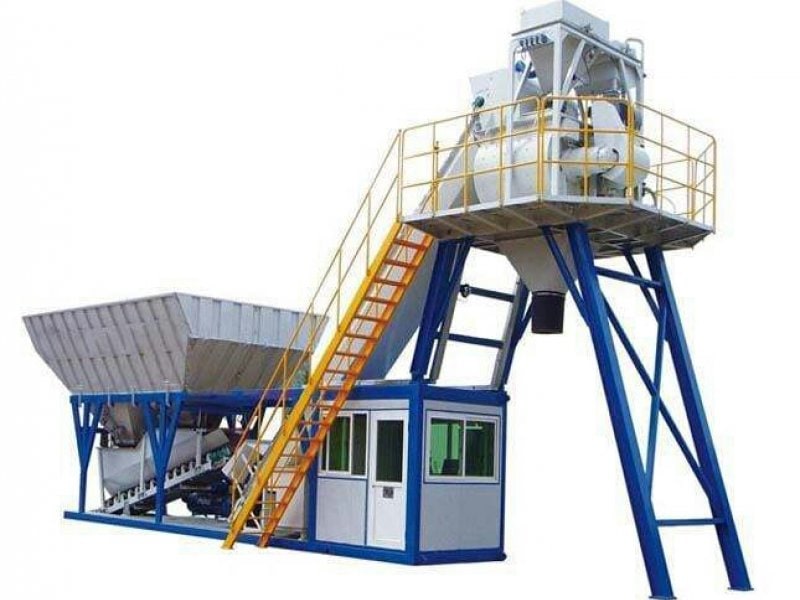

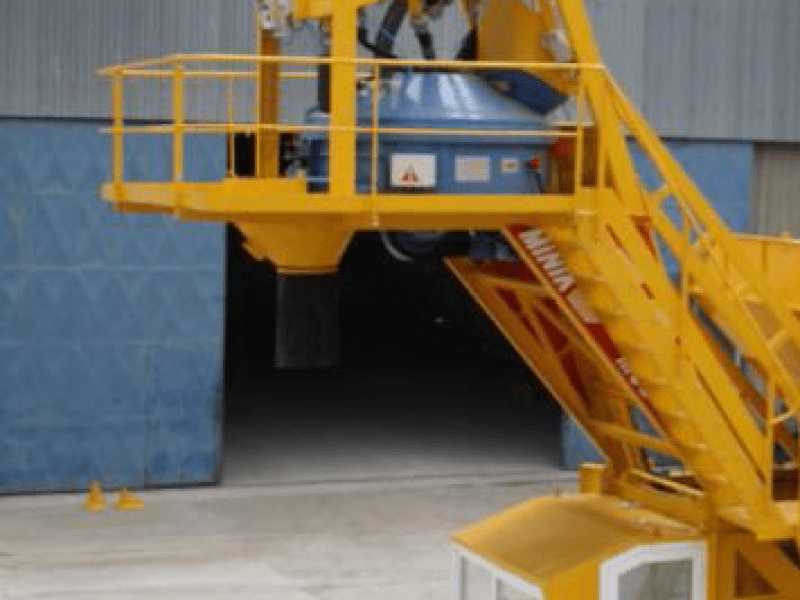

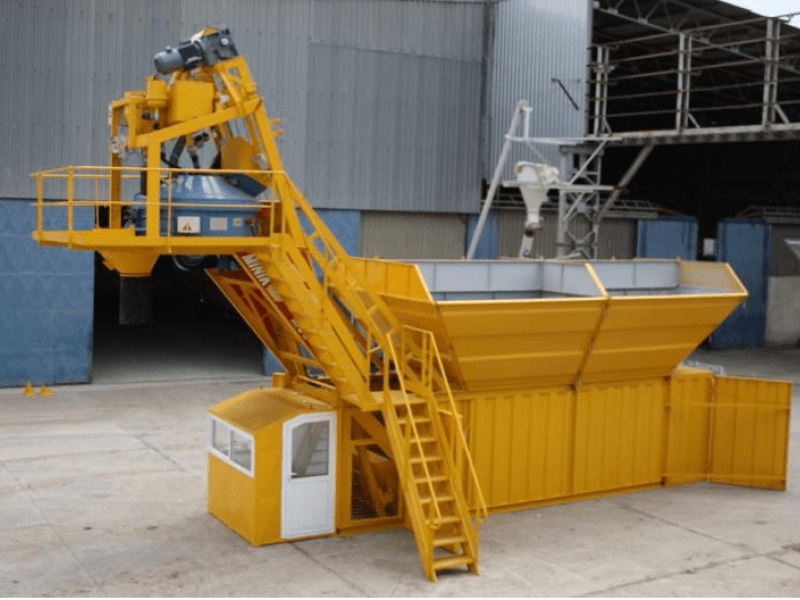

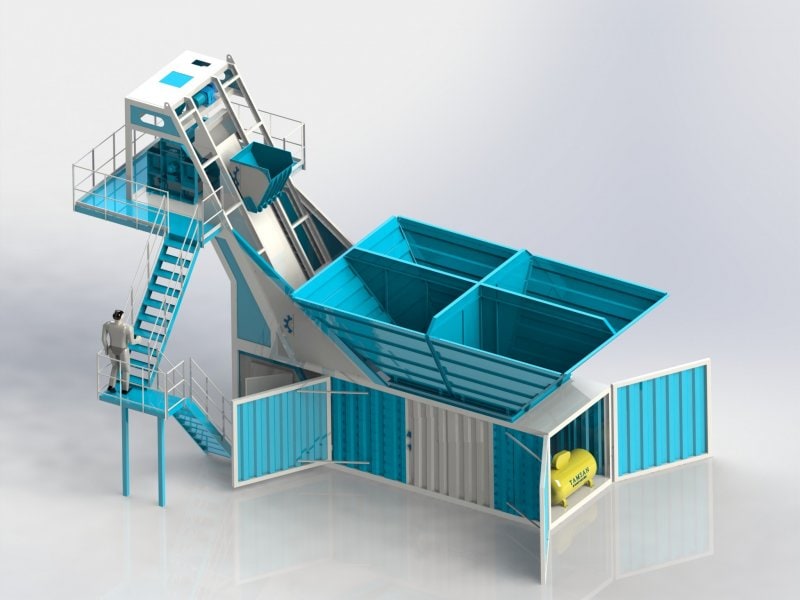

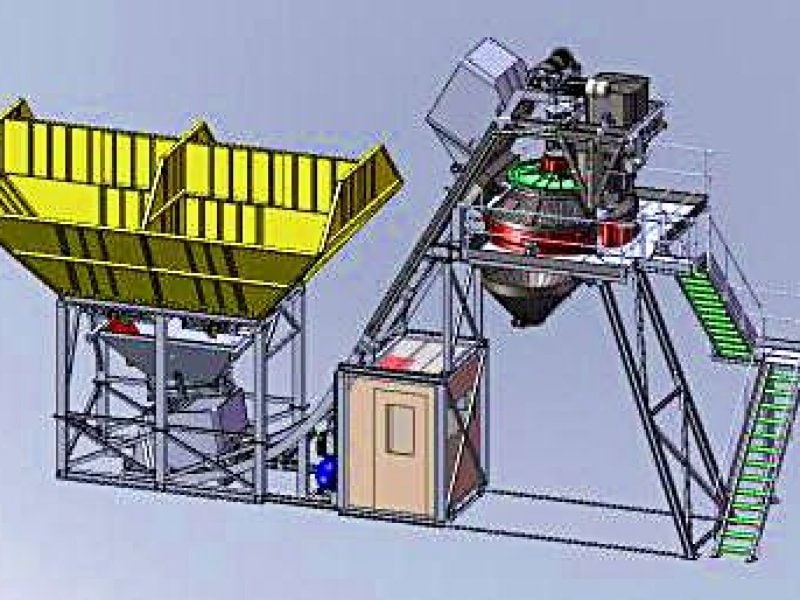

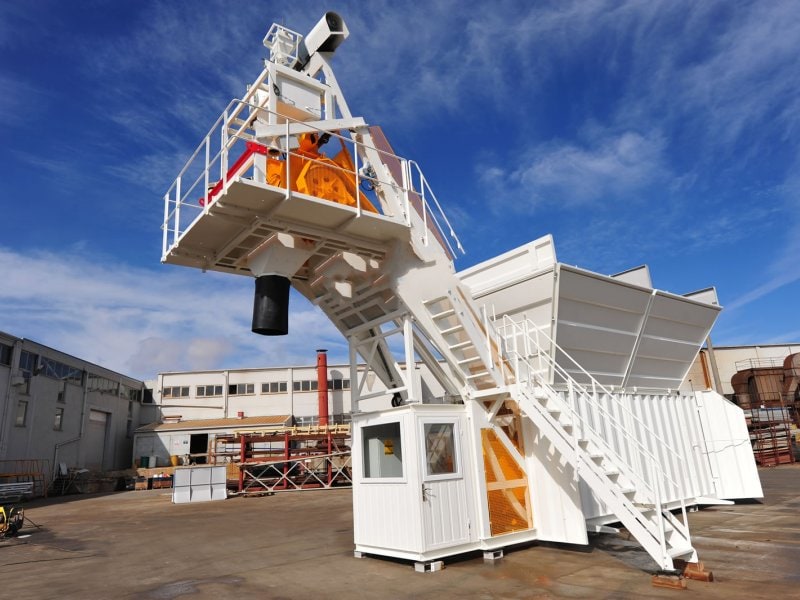

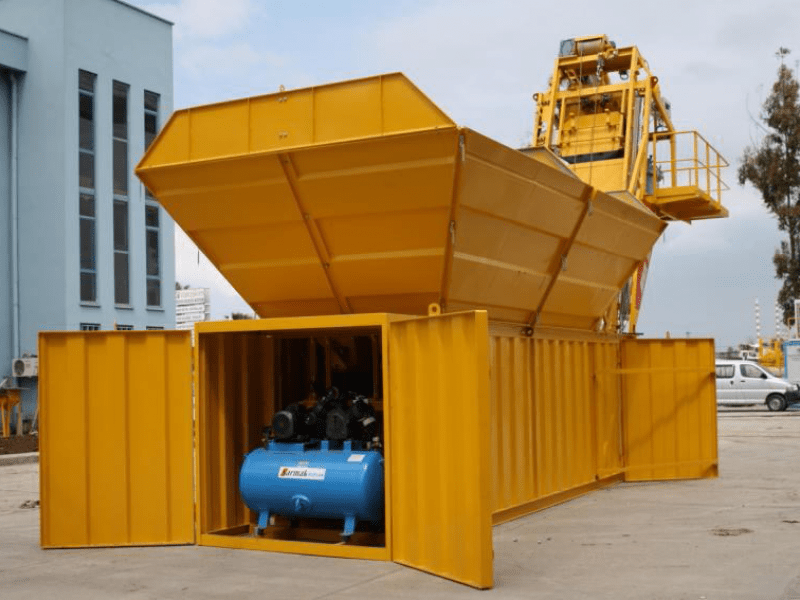

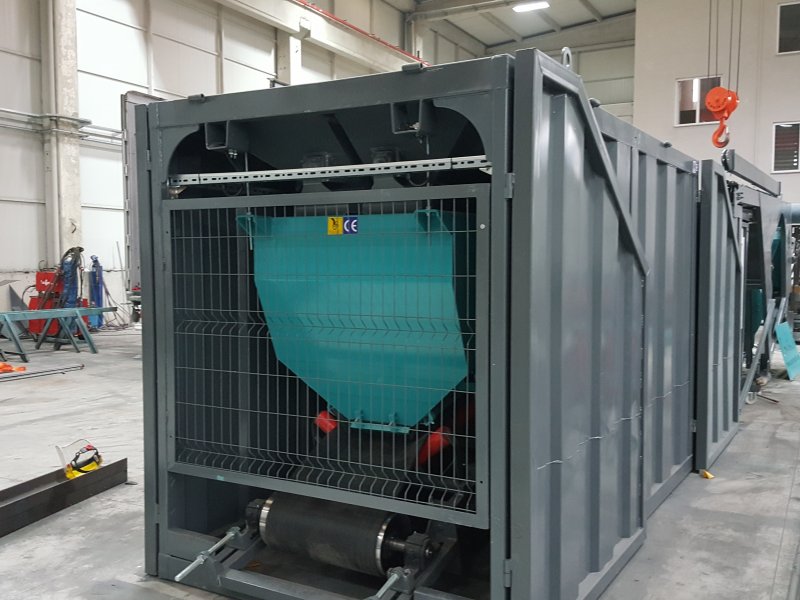

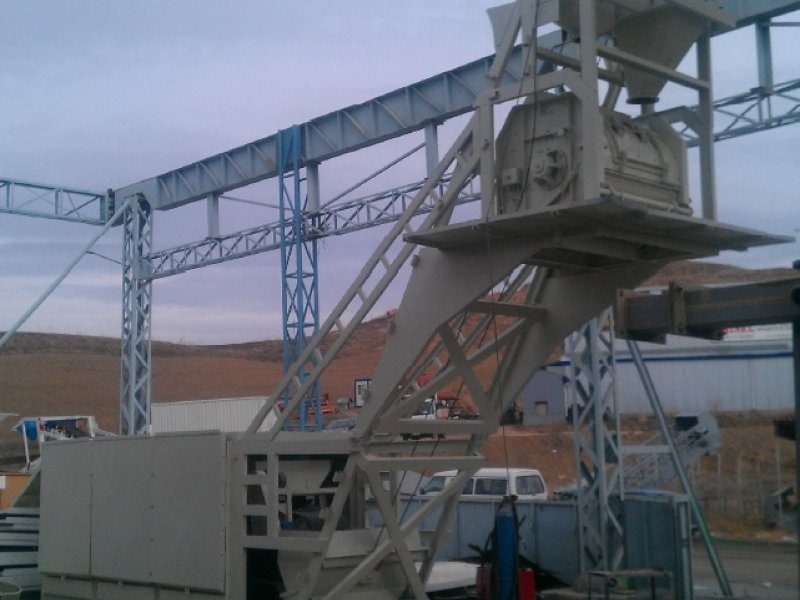

Compact concrete batching plants are easy and fast to install and can be transported easily. Can be transported with a single truck or 40 ft OT single container. They have low operating and maintenance costs. It provides an advantage to its user that reduces operating and energy costs. This type of plant is generally preferred in areas with low space or low concrete needs. They are produced as of 20 m³ / h, 30 m³ / h and 60 m³ / h. They are easy to transport and bucketed type structures.
Get a Contact Us| CONCRETE PLANT | UNIT | COMPACT 20 | COMPACT 30 |
|---|---|---|---|
| PLANT CAPACITY | m³/h | 20 m³/h | 30 m³/h |
| WET CONCRETE CAPACITY | m³/h | 20 m³/h | 30 m³/h |
| AGGREGATE WEIGHING | Kg | 1200 Kg | 1200 Kg |
| CEMENT WEIGHING | Kg | 250 Kg | 250 Kg |
| WATER WEIGHING | Lt | 160 Lt | 160 Lt |
| ADDITIVE WEIGHING | Kg | 20 Kg | 25 Kg |
| AGGREGATE TRANSFER BUCKET | m³ | 0,75 m³ | 0,75 m³ |
| AGGREGATE HOLDING BUNKER | m³ | ………….…… | ………….…… |
| AIR COMPRESSOR | Lt/d | 550 Lt/d | 550 Lt/d |
| WATER BOOSTER | kW-ton | 3 kW - 15 ton | 3 kW - 15 ton |
