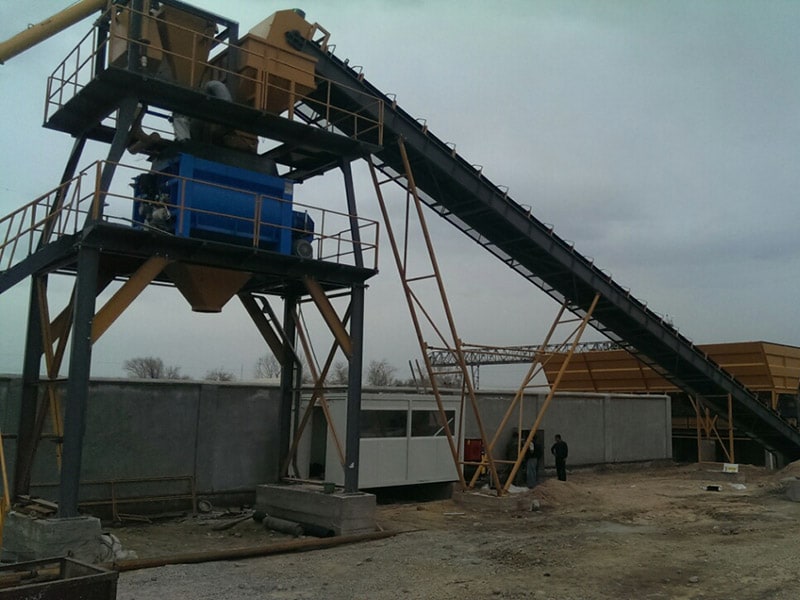

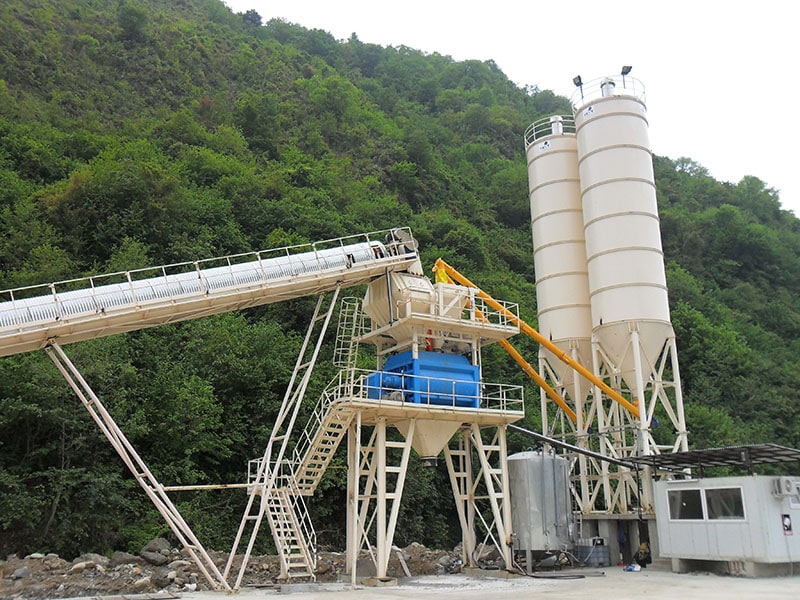

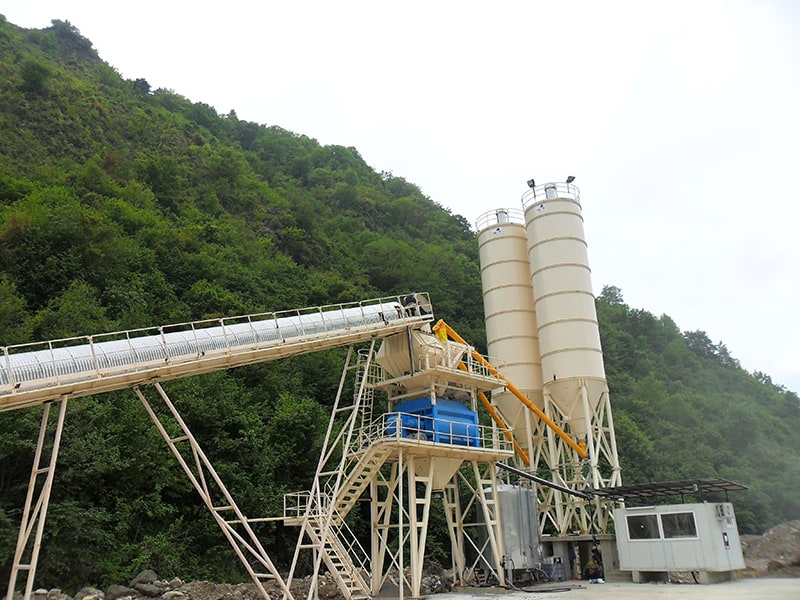

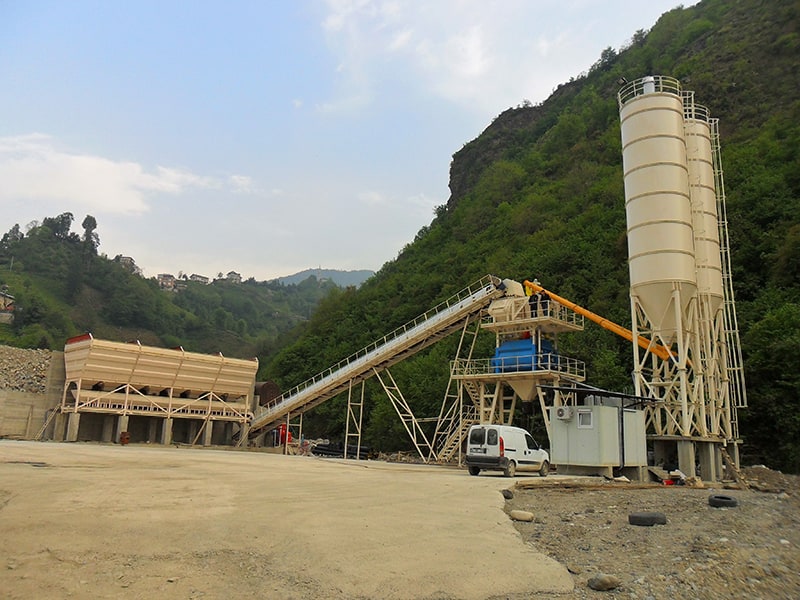

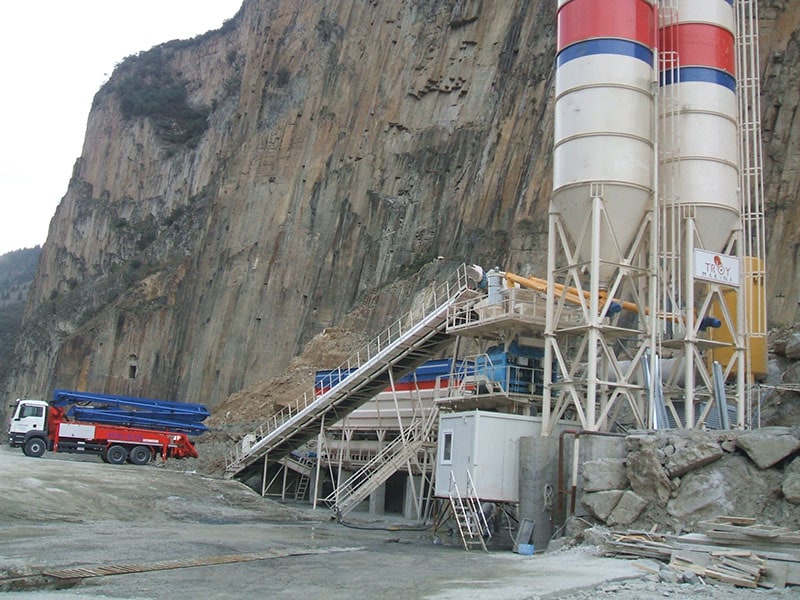

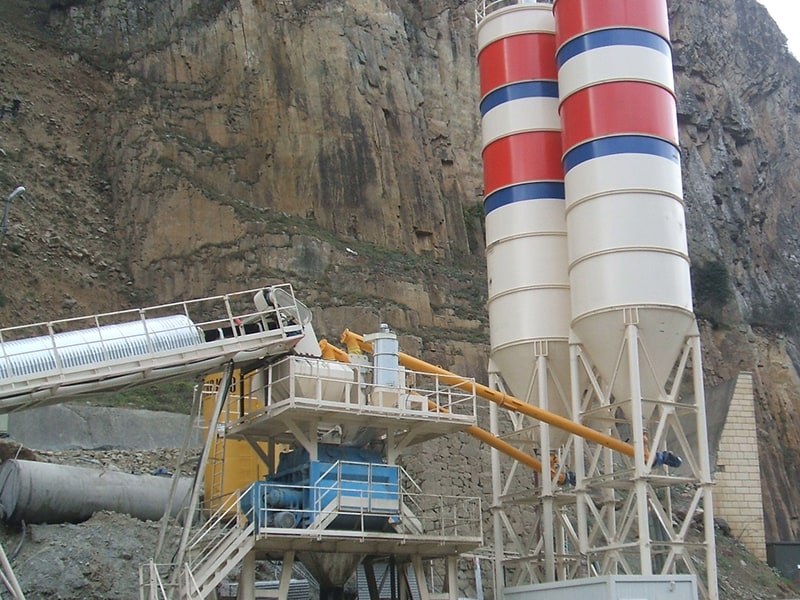

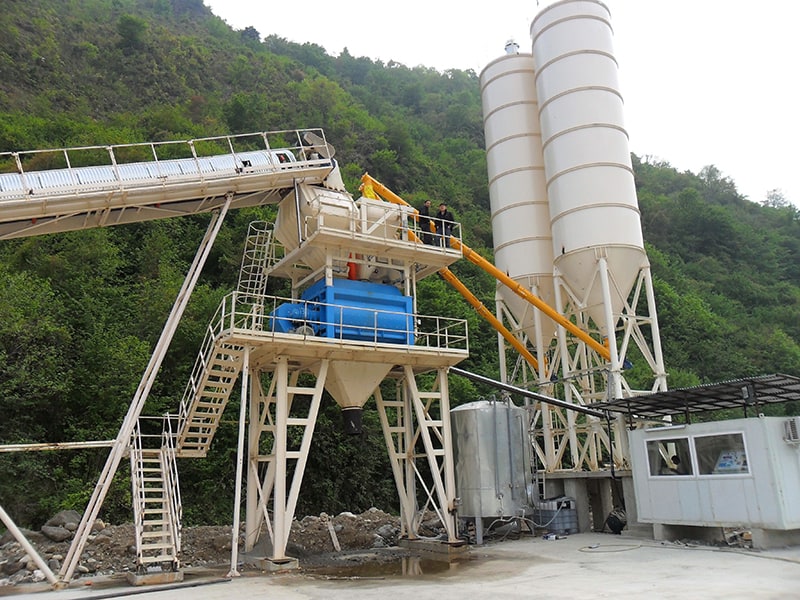

HWK S-100 Stationary Concrete Batching Plant

Stationary type ready-mixed concrete plants are produced in three different models as stationary, compact and dry type. Works with actual capacities from 20 m³ to 200 m³ per hour. Mixers are determined according to the customer's needs and the most suitable mixer is used according to the quantity and quality of the concrete to be produced. In order to complete the installation in the most optimum way, all assembly and adaptation processes that can be done before and during the production process are prepared in our workshop and shipped to the customer site as tested. The automation system used is designed as simple and multifunctional so that the operator does not experience any adaptation problems. Specially designed ready-mixed concrete batching plants are designed for the needs of the customers and the customer needs are met at the optimum level.

Get a Contact Us

HWK S-100 Stationary Concrete Batching Plant Technical Informations

CONCRETE PLANT UNIT STATIONARY 100
PLANT CAPACITY m³/h 100 m³/h
WET CONCRETE CAPACITY m³/h 100 m³/h
AGGREGATE WEIGHING Kg 4800 Kg
CEMENT WEIGHING Kg 1000 Kg
WATER WEIGHING Lt 700 Lt
ADDITIVE WEIGHING Kg 50 Kg
AGGREGATE TRANSFER BUCKET ………….……

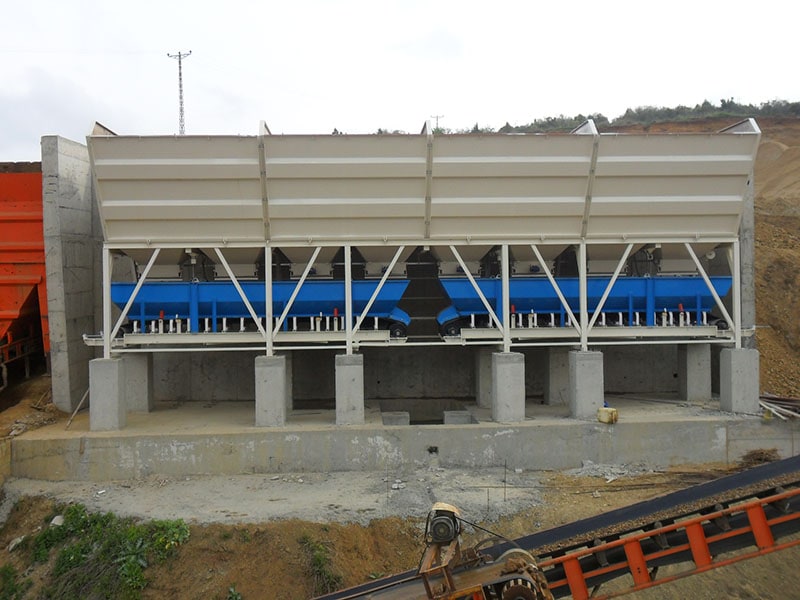

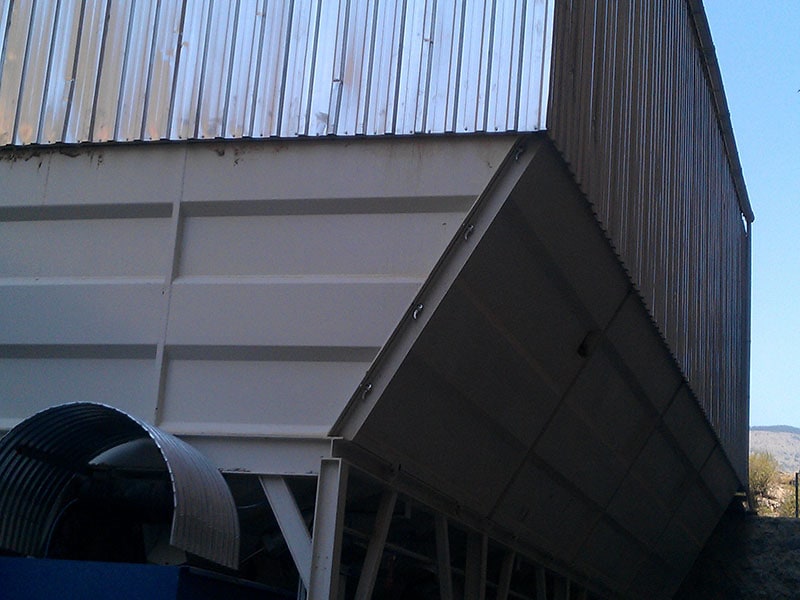

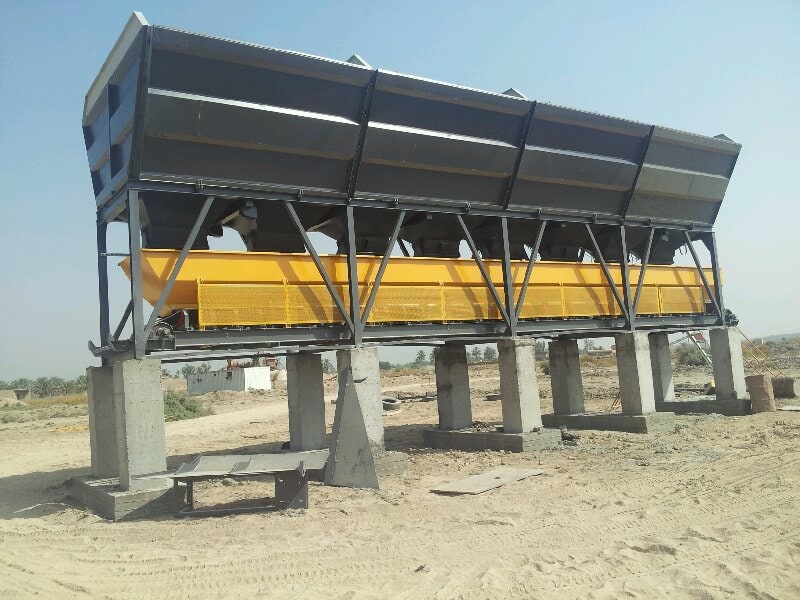

AGGREGATE HOLDING BUNKER 3 m³
AIR COMPRESSOR Lt/d 1100 Lt/d
WATER BOOSTER kW-ton 2x4 kW-60 ton
