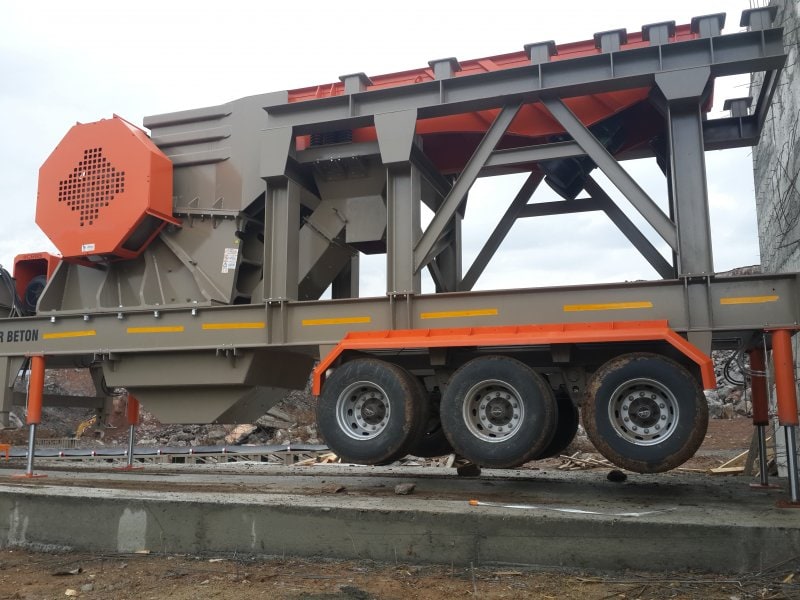

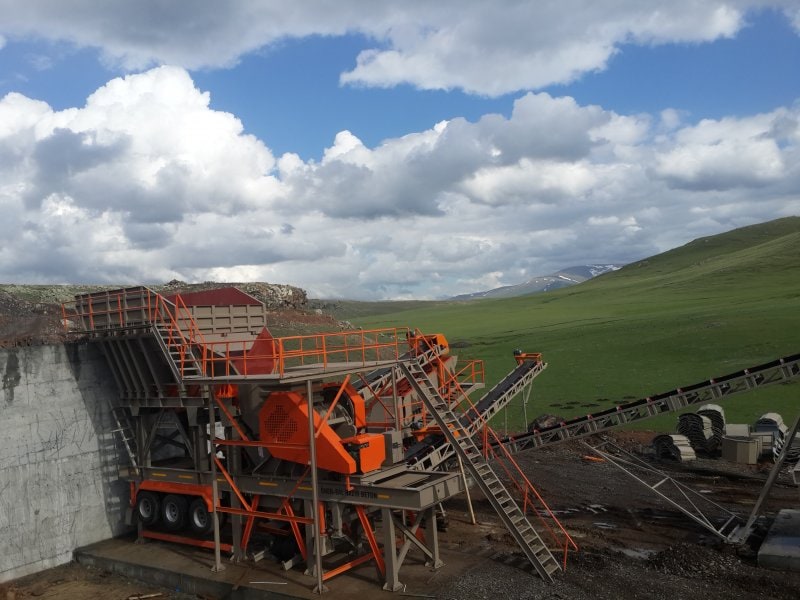

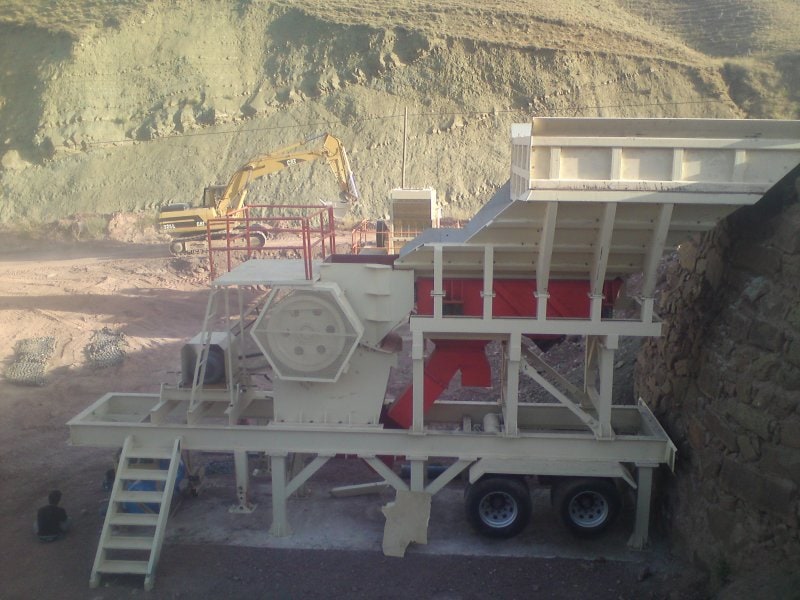

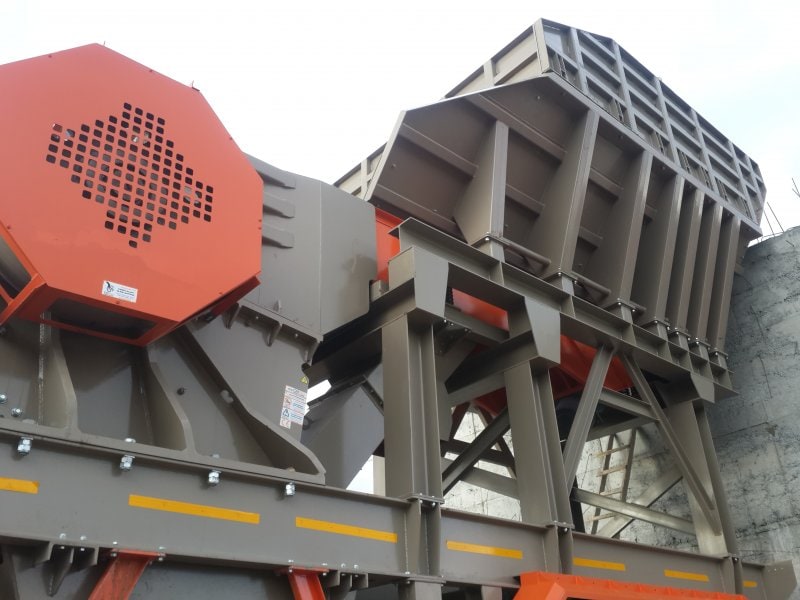

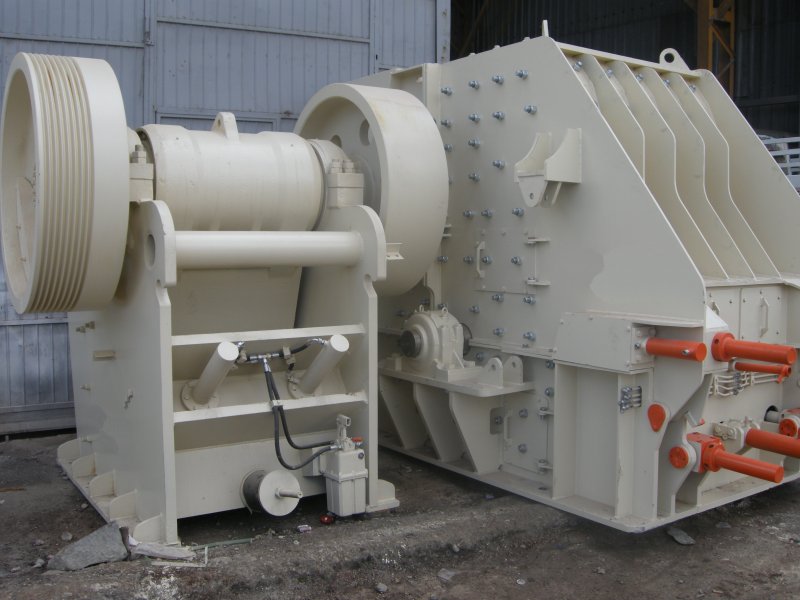

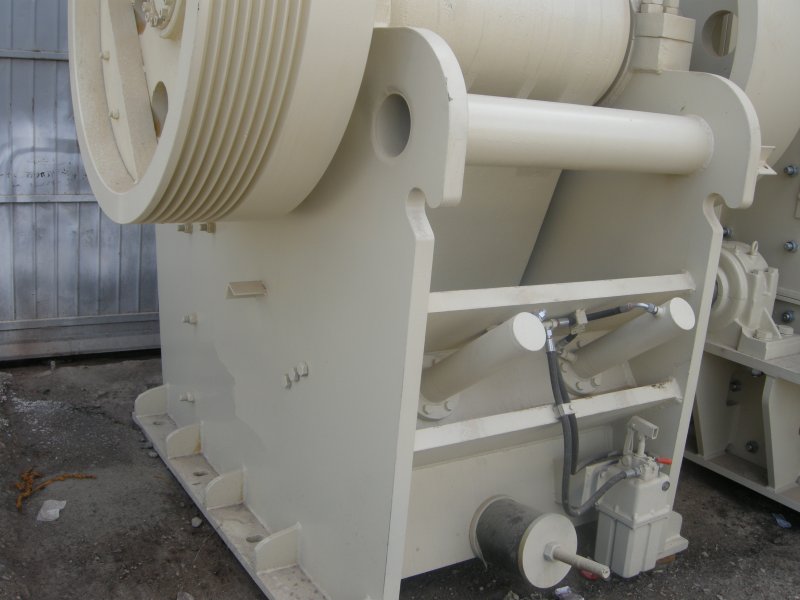

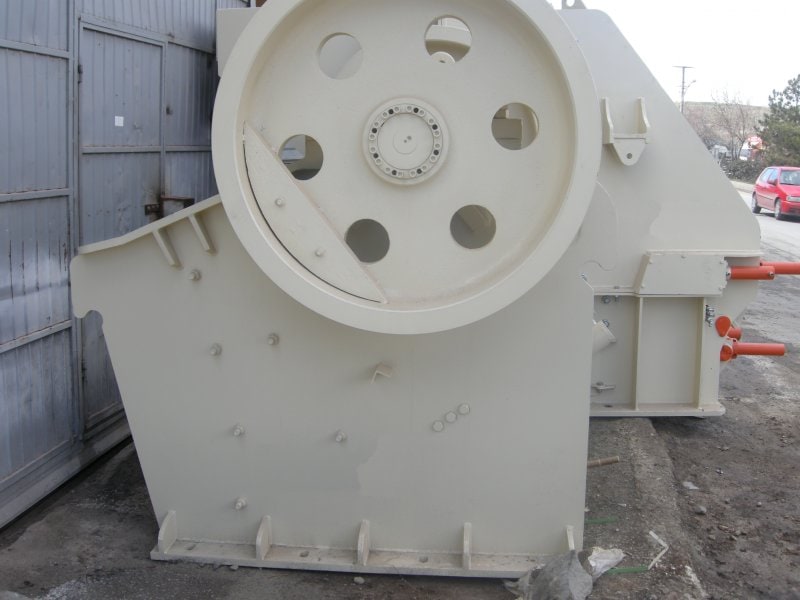

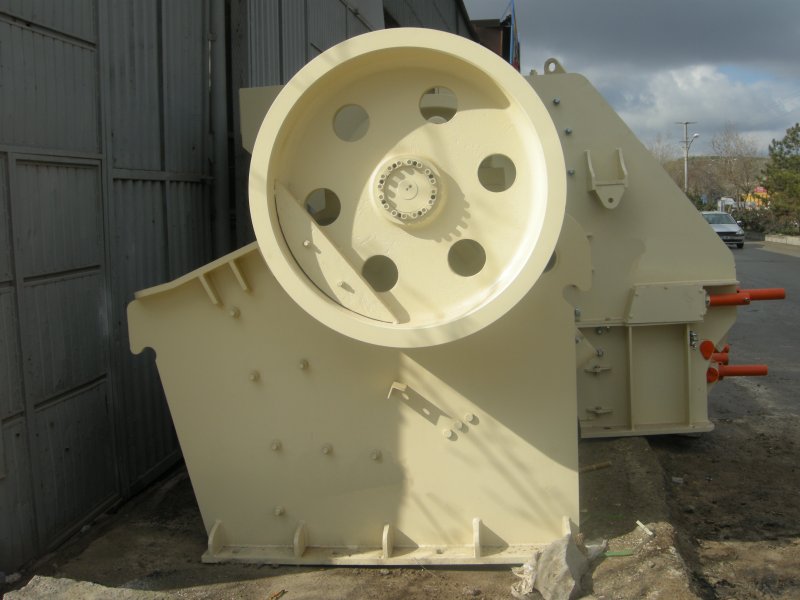

Primary and Secondary Jaw Crushers

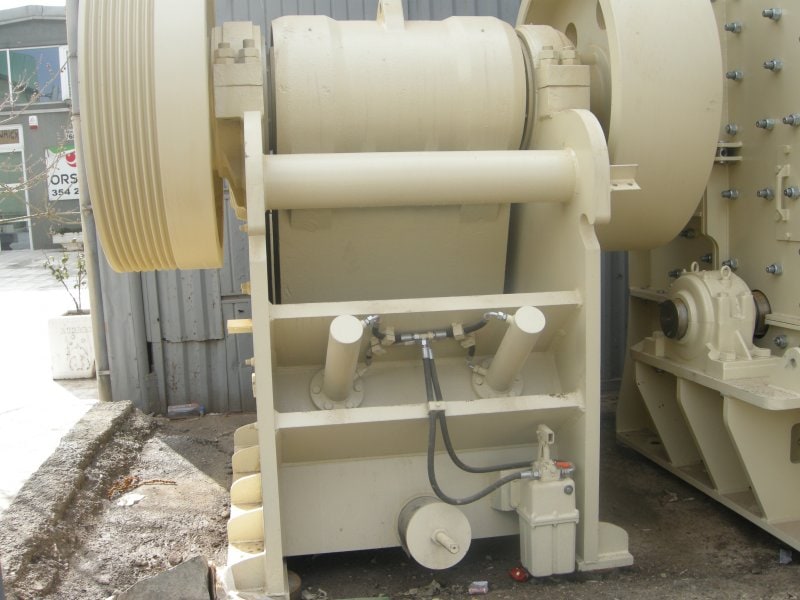

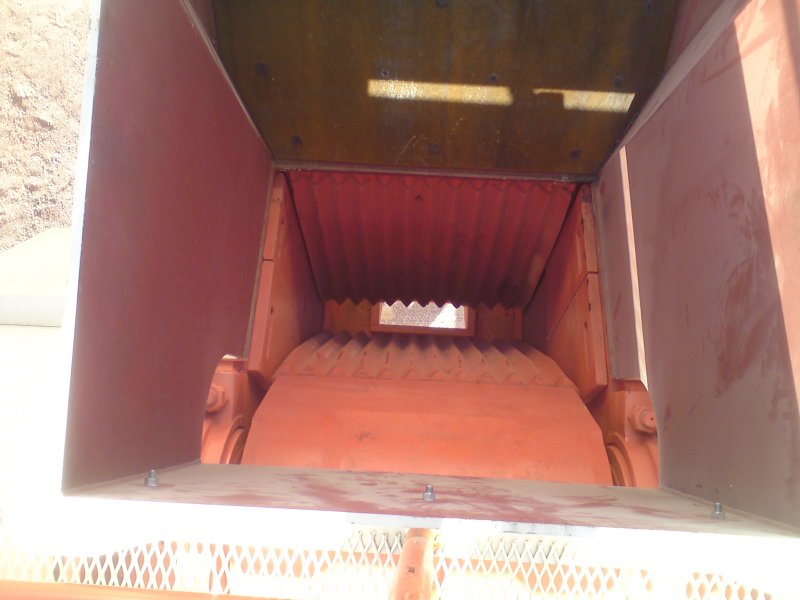

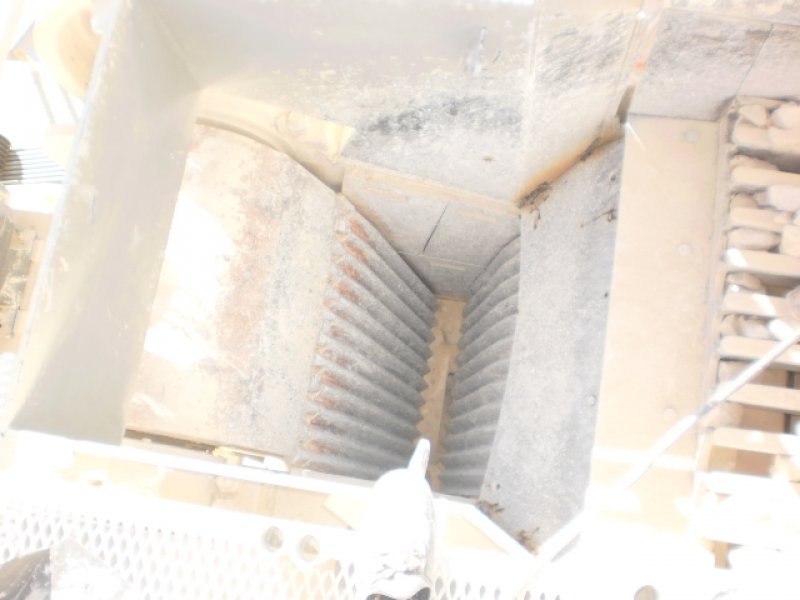

They are primary and secondary crushers which are designed to break all kinds of materials, regardless of hardness and abrasiveness. They are jaw crushers that stuck and crush the material by means of the elliptical movement of the movable jaw between the stationary and movable jaw. It is the most preferred of primary crushers with its settings made by hydraulic system and also its high performance and efficiency.
Jaw crushers are designed to break all kinds of materials from soft limestone to the hardest basalt. There are 9 different types of primary and secondary jaw crushers from 150 x 100 mm (6”x 4”) laboratory type to 1300 x 1100 mm (55”x43”) mouth opening.
Jaw crusher is specially designed for breaking even the most difficult to break materials. This type of primary crusher, which is ideal for operation in every budget with its short installation time, low cost and easy maintenance features, breaks even the most difficult items with the principle of compression.
Jaw Crusher Advantages:
Adjustable jaw structure to receive the desired product.
Possibility to be used as primary and secondary crusher.
Since the camshaft is forged steel, its life is long.
Possibility of breaking the hardest and most abrasive rock pieces.
It has high capacity and works smoothly for many years.
Get a Contact Us| PRİMARY JAW CRUSHERS - TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | MOUTH (JAW) DIMENSIONS (mm) | MOTOR (kW) | FLYWHEEL ROTATION (RPM) | WEIGHT (kg) | |||||||
| K01 | 450x250 | 15-1500 | 225 | 2600 | |||||||
| K02 | 610x380 | 30-1500 | 330 | 6000 | |||||||
| K03 | 900-650 | 75-1500 | 293 | 11400 | |||||||
| K05 | 150x100 | 4-1500 | 360 | 500 | |||||||
| K06 | 300x150 | 7,5-1500 | 340 | 1300 | |||||||
| K07 | 1100-850 | 132-1500 | 228 | 33000 | |||||||
| K08 | 1400X1100 | 200-1500 | 225 | 51500 | |||||||
| K11 | 1300-1000 | 160-1000 | 210 | 42500 | |||||||
| SECONDARY JAW - TECHNICAL INFORMATION | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | MOUTH (JAW) DIMENSIONS (mm) | MOTOR (kW) | FLYWHEEL ROTATION (RPM) | WEIGHT (kg) | |||||||
| K04 | 900X200 | 30-1500 | 330 | 6000 | |||||||
| K09 | 1100X350 | 55-1500 | 485 | 11000 | |||||||
| PRIMARY JAW CRUSHERS - CAPACITY ACCORDING TO JAW DIMENSIONS (TON / SAAT) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| CRUSHER ADJUSTMENT | PRIMARY TYPE | SECONDARY TYPE | |||||||||
| JAW DIMENSIONS mm | inch | K05 | K06 | K01 | K02 | K03 | K07 | K08 | K11 | K04 | K09 |
| 6 | 1/4" | 0,2-0,3 | |||||||||
| 12 | 1/2" | 0,6-0,7 | 1-1,5 | ||||||||
| 20 | 3/4" | 0,8-1 | 1,8-2 | 3-6 | 9-16 | 30-50 | |||||
| 25 | 1" | 1,2-1,5 | 3,5-4 | 4-8 | 13-22 | 40-60 | |||||
| 30 | 11/4" | 4,5-6 | 6-9 | 12-28 | 50-75 | ||||||
| 40 | 11/4" | 5-7 | 7-12 | 20-33 | 20-40 | 75-100 | |||||
| 50 | 2" | 7-8 | “ | 24-38 | 32-44 | 80-125 | |||||
| 60 | 2" | 12-18 | 30-45 | 50-78 | 40-59 | 95-150 | |||||
| 70 | 2" | 15-22 | 36-52 | 60-80 | 50-65 | 110-175 | |||||
| 80 | 3" | 18-28 | 42-60 | 65-90 | 56-75 | 125-200 | |||||
| 90 | 3" | 22-30 | 48-68 | 72-100 | 140-225 | ||||||
| 100 | 4" | 55-75 | 78-110 | 100-125 | 155-250 | ||||||
| 125 | 5" | 60-85 | 90-130 | 140-175 | 335-465 | 275-330 | |||||
| 150 | 6" | 80-115 | 105-160 | 175-220 | 395-545 | 325-390 | |||||
| 175 | 7" | 135-200 | 210-265 | 455-625 | 370-445 | ||||||
| 200 | 8" | 175-240 | 250-310 | 510-710 | 415-500 | ||||||
| 250 | 10" | 320-640 | 630-870 | 510-610 | |||||||
| 300 | 12" | 400-800 | 760-1045 | 545-755 | |||||||
