The crusher can perform primary, secondary and tertiary crushing by means of three-stage crusher pendulums. It has versatile use area. They are used as primary and secondary crushers for high hardness materials and as primary, secondary and tertiary crushers for medium and low hardness materials.
Feeding of large materials, high reduction ratio, cubic product and low operating costs are the most important reasons of choice.

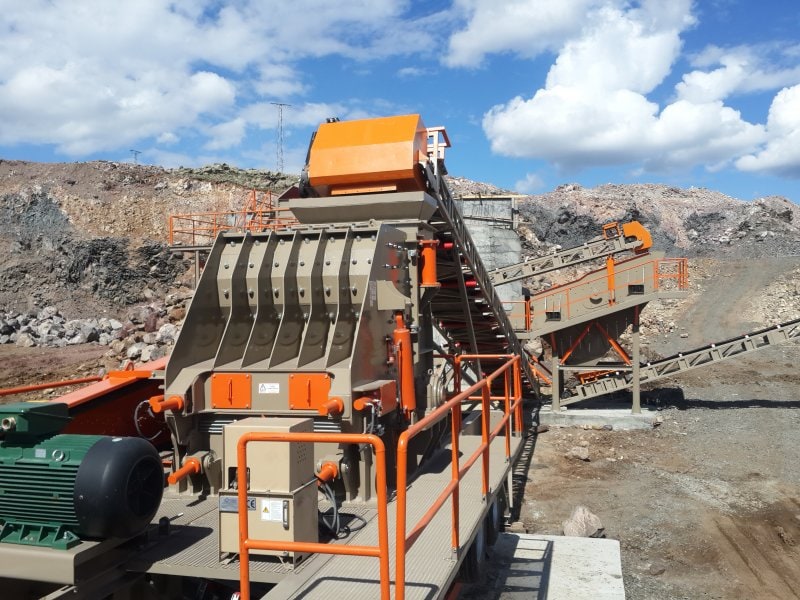

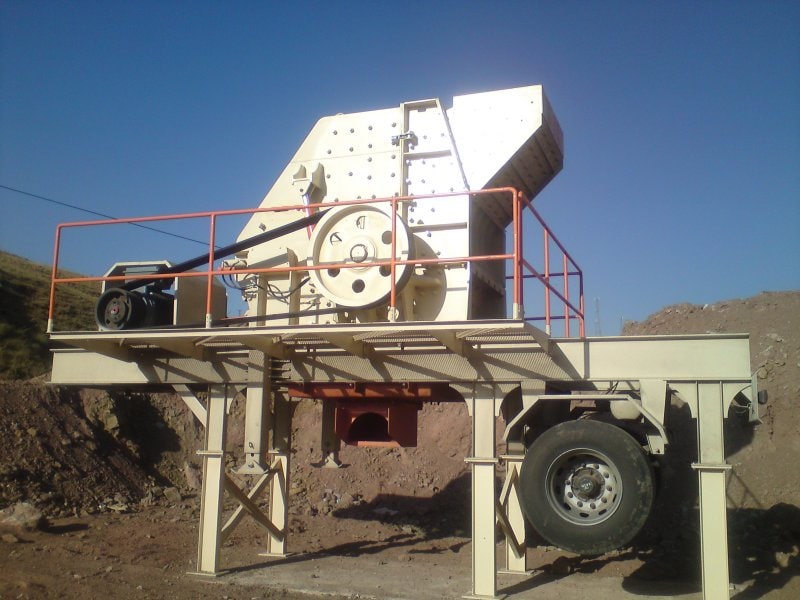

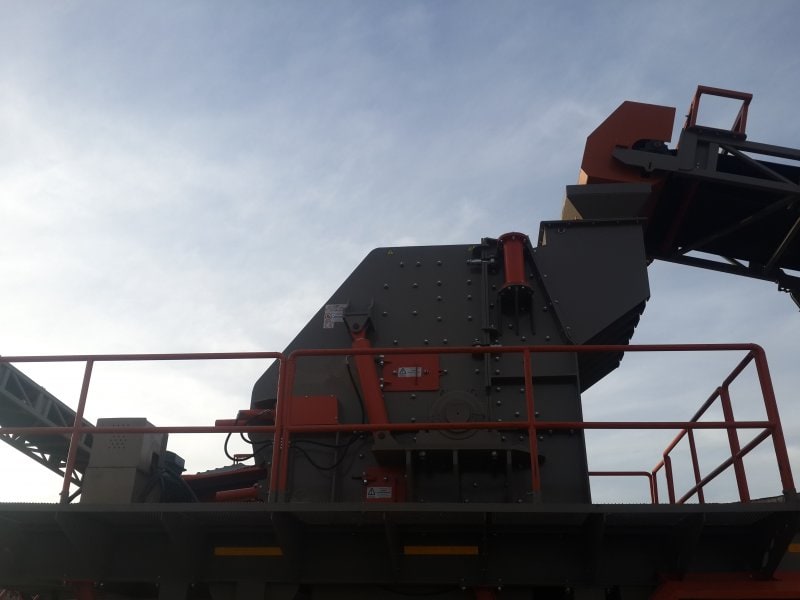

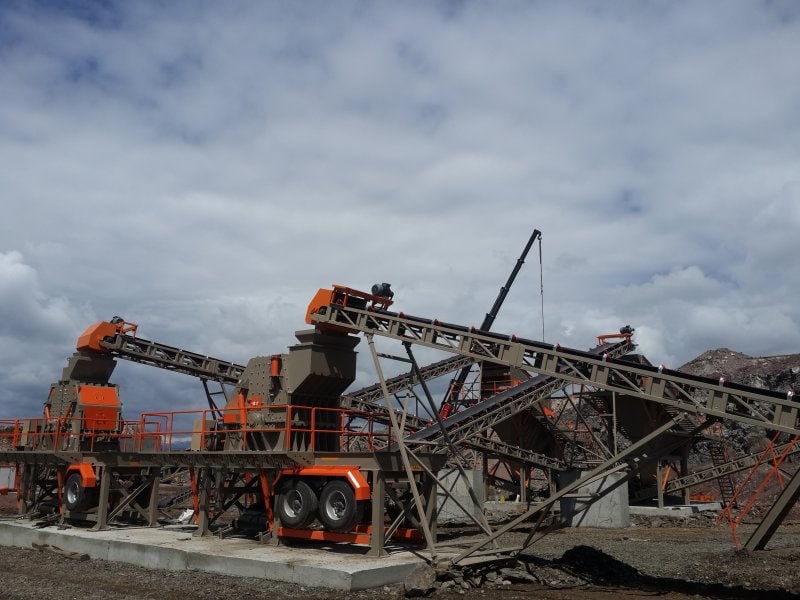

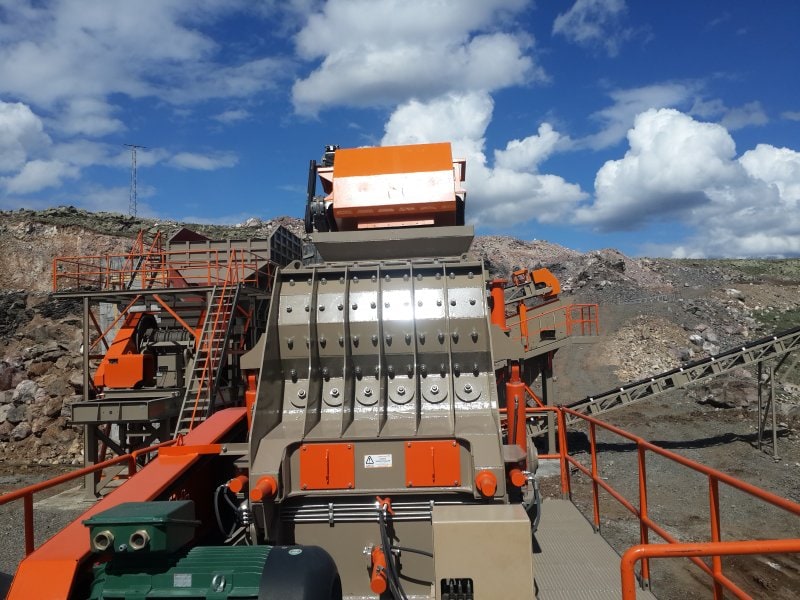

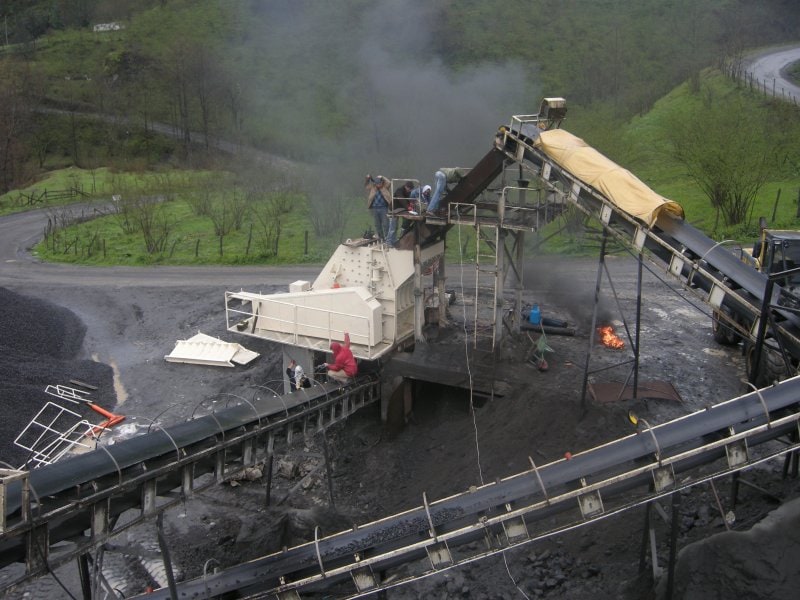

DMK series crushers which are from jaw adjusted impact crusher class, are crushers that break medium and low hard materials (such as limestone and dolomite) into asphalt and concrete aggregates size. Large material feedability, cubic product, high reduction ratio, high capacity, low investment and operating costs make this type of crushers the ideal secondary crusher in crushing and screening plants.

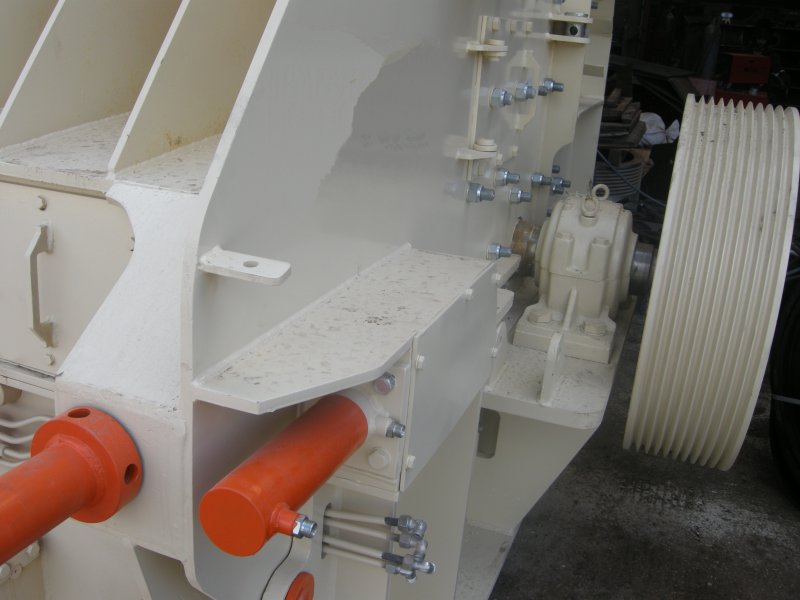

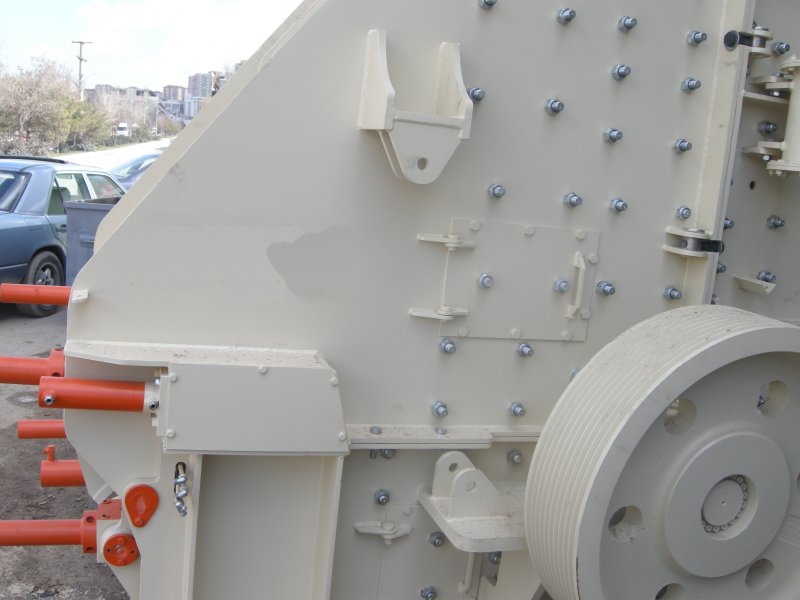

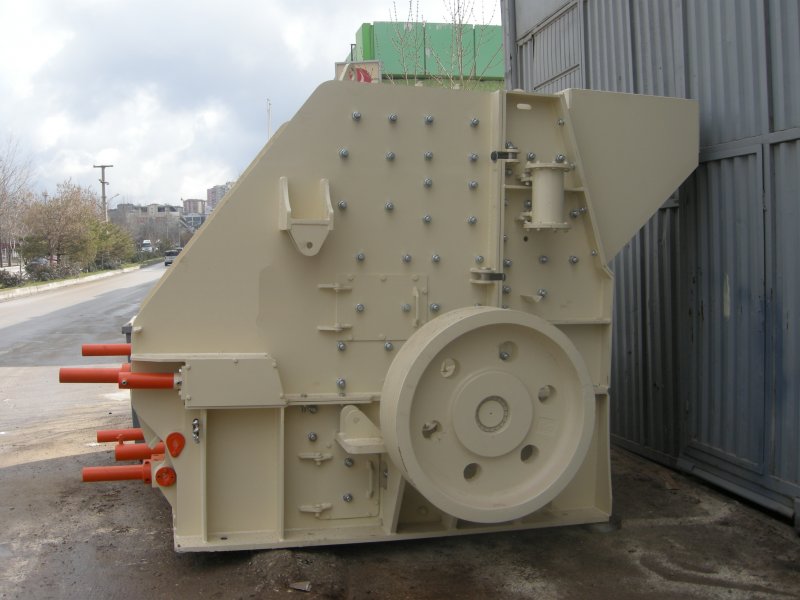

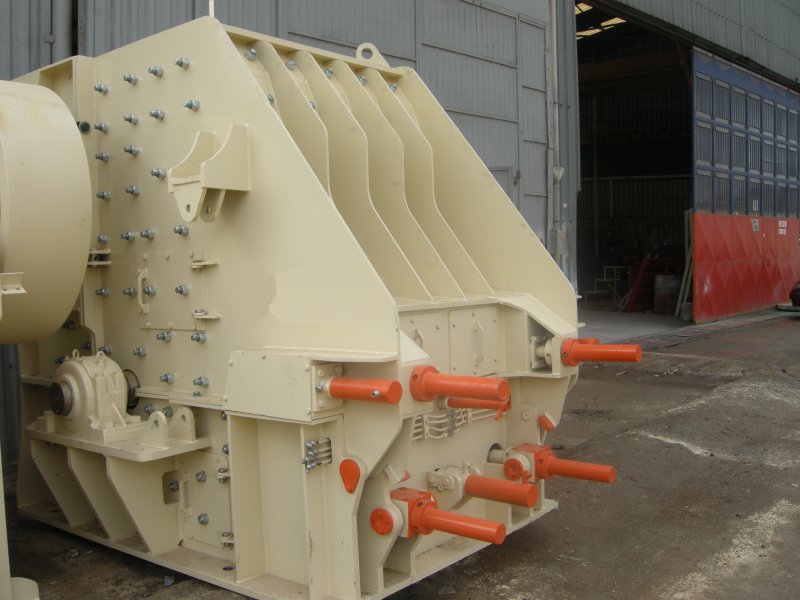

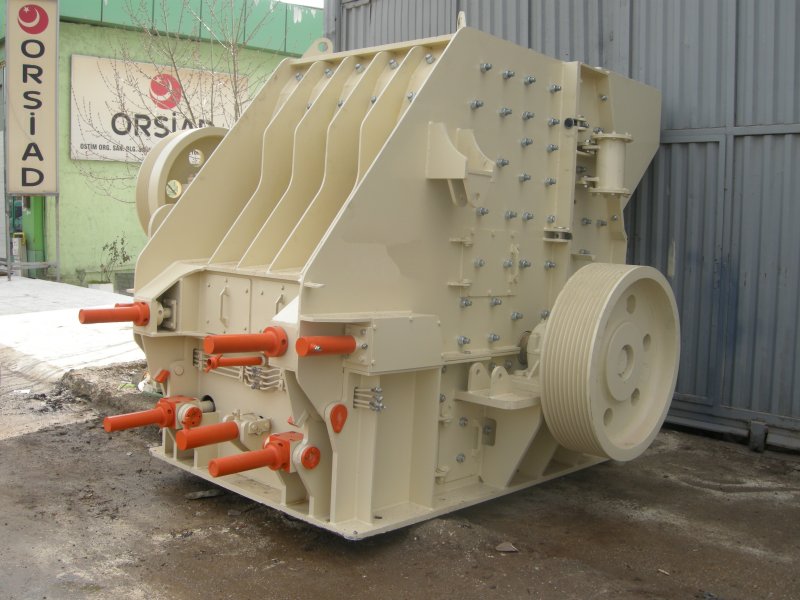

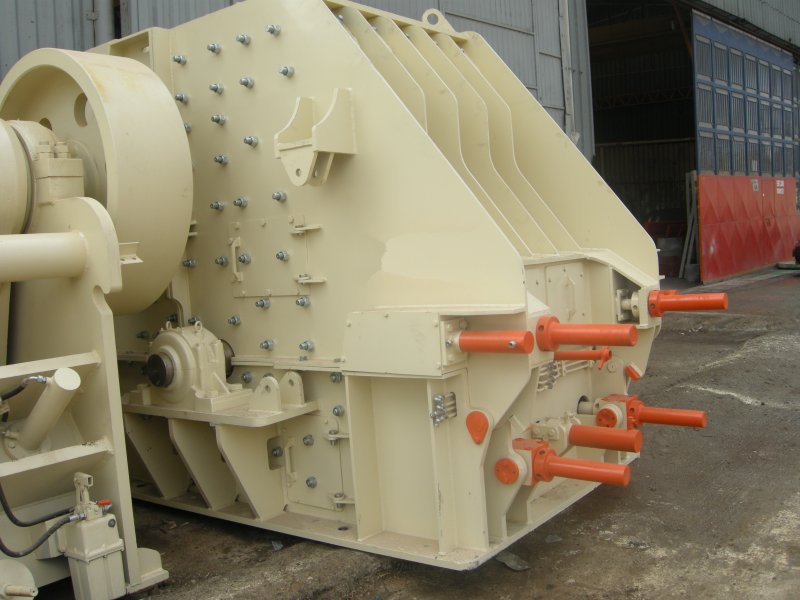

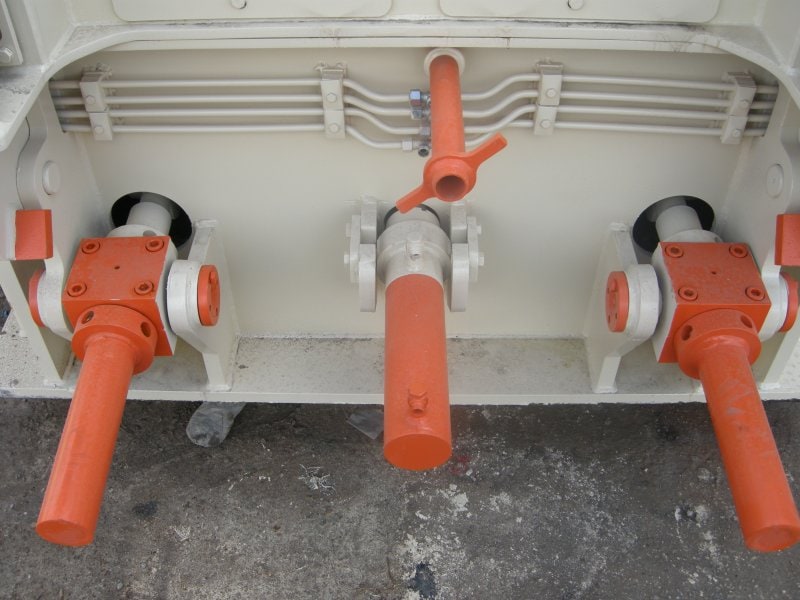

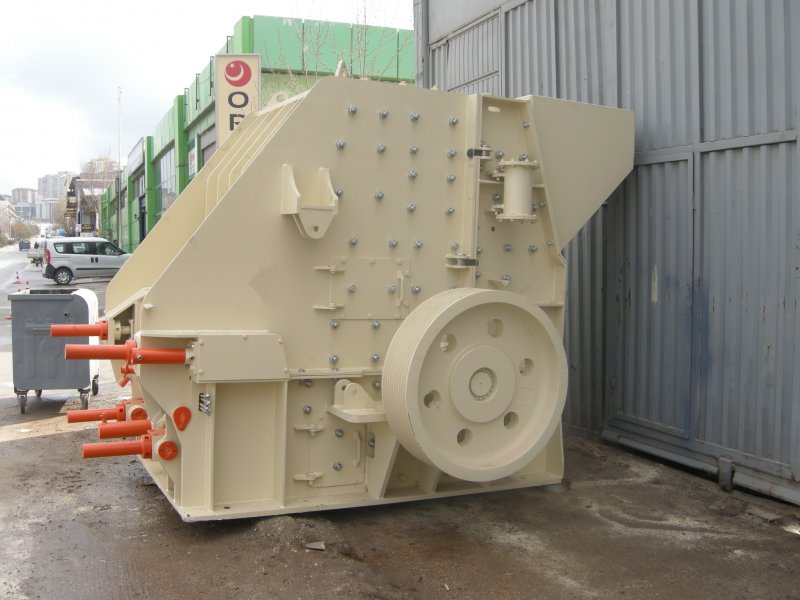

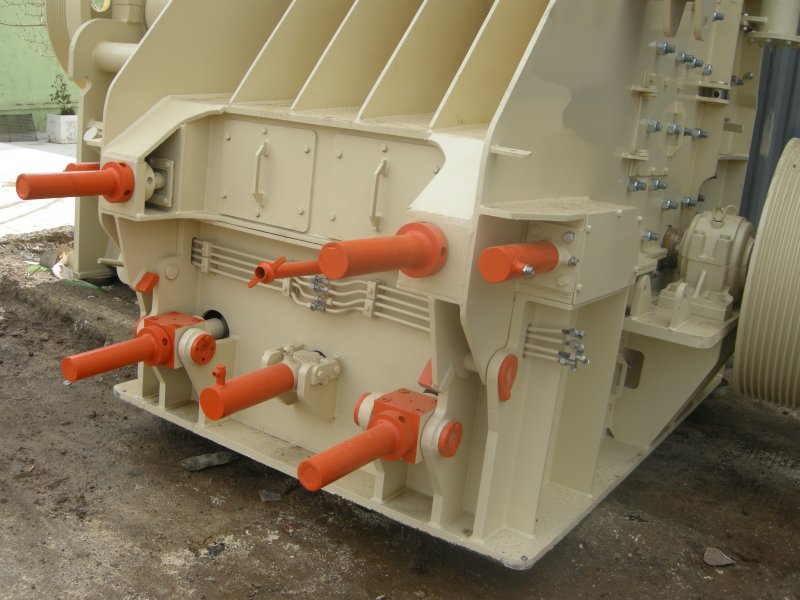

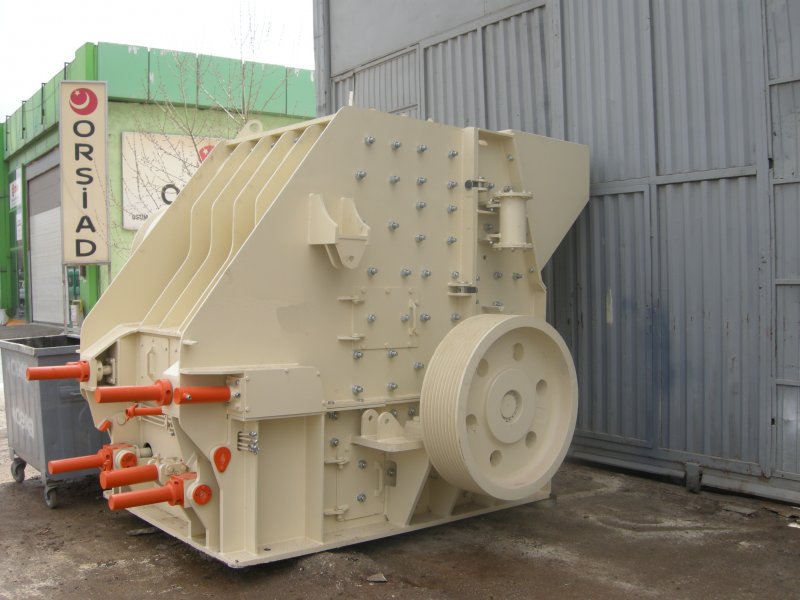

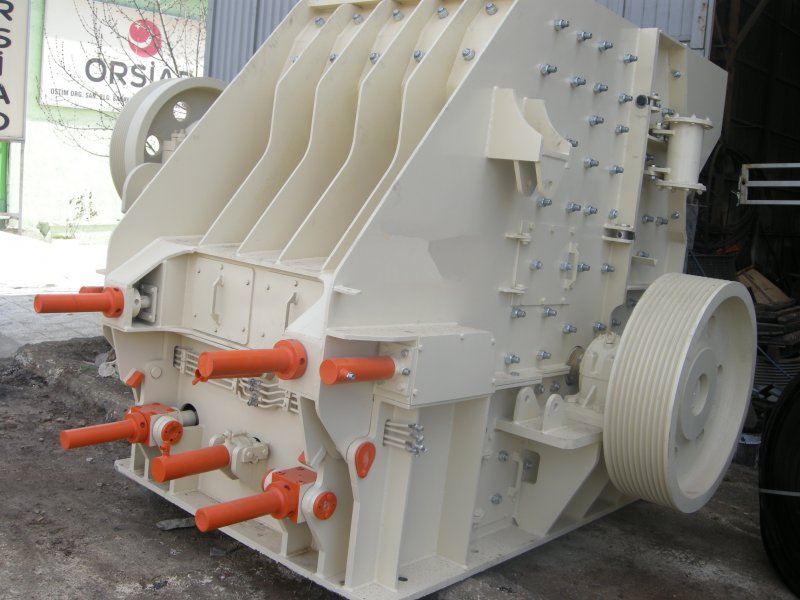

The crusher body consists of three main parts that are easily removed: the fixed lower body carrying the rotor and the upper body above it. Upper body can be opened to reveal rotor and internal parts by turning around a joint with hydraulic mechanism. Assembly and disassembly is very simplified.
Get a Contact UsSECONDARY IMPACT CRUSHERS - TECHNICAL INFORMATION | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
MODEL | ROTOR SIZE (mm) | FEEDING SIZE (mm) | CAPACITY (tons/hour) | MOTOR(kW) | WEIGHT (kg) | ||||||
CSI-1210 | 1100x1000 | 200 | 120-150 | 160 | 14500 | ||||||
CSI-1212 | 1100x1250 | 250 | 200-250 | 200 | 18500 | ||||||
CSI-1215 | 1100x1400 | 350 | 300-350 | 250 | 20000 |
